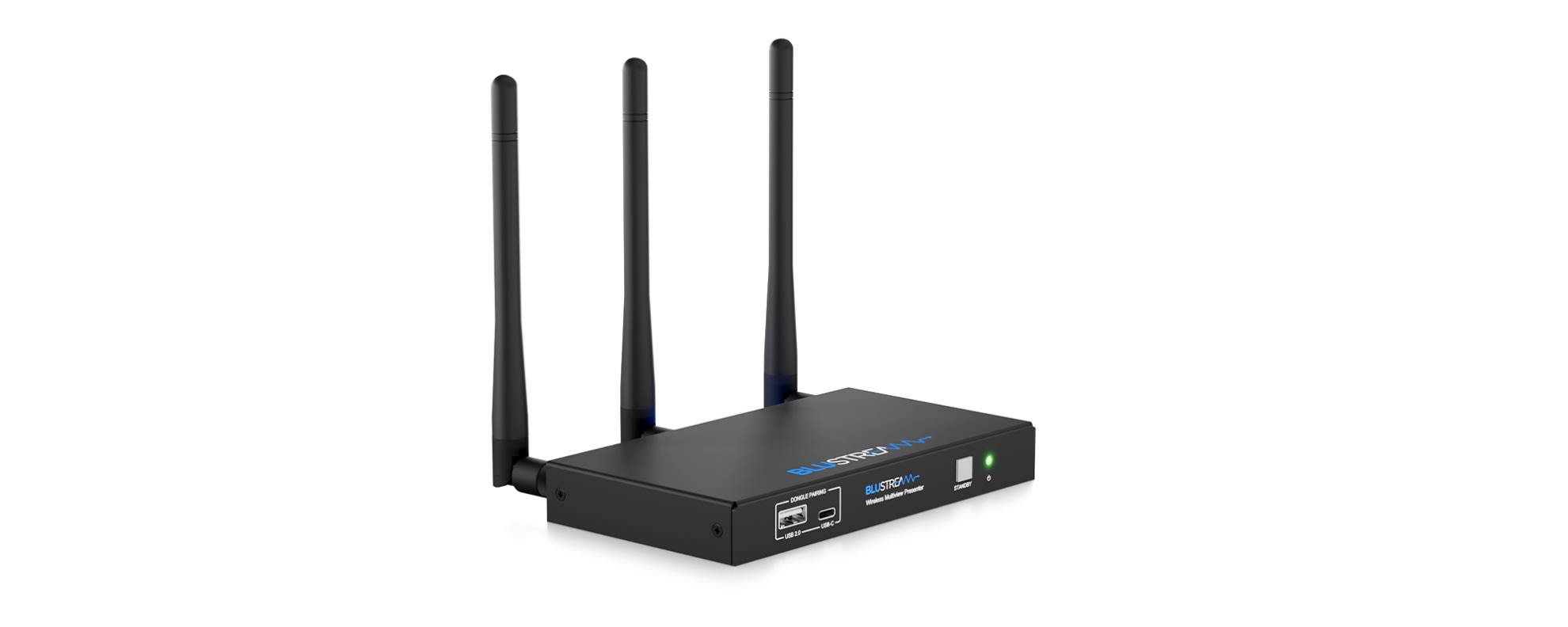

WMF51

Wireless Multiview Presenter

• 4K multi-format multi-view presentation switch • Features AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to a single HDMI output • Multiview presentation with up to 4 concurrent video signals with configurable screen layout • In-built video scaler with output timing up to 4K 60Hz 4:2:0 • Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p)• Dual LAN connection for integration to existing network infrastructures• Supports USB 3.0 touch-back feature via WMF-USBC / WMF-HDMI dongles and Miracast®* • Audio breakout to analogue L/R audio • Web interface module for control and configuration of unit • OSD control with preview function • Whiteboard and screen overlay annotation feature • Control via front panel, RS-232 and TCP/IP with manual or auto source selection • Features Class 0 IEEE 802.3af PoE for powering of product from a PoE switch *Miracast touch-back compatibility subject to Windows features. USB 3.0 connection is for connectivity to an interactive display for touch-back capabilities only, and does not feature the full USB 3.0 bandwidth capabilities for use with VC / UC equipment. • WiFi Specification for Europe only:            2.4GHz EIRP < 20dBm            5.1505.250GHz EIRP < 23dBm            5.7255.850GHz EIRP < 13.98dBm • Dimensions (W x H x D): 165mm x 22mm x 90mm (excluding antennas) • Shipping Weight: 1.5kg • Operating Temperature: 0°C to 45°C (32°F to +113°F) • Storage Temperature: -20°C to 70°C (-4°F to +158°F) • Power Supply: Class 0 IEEE 802.3af PoE PD or 12v/1.5A DC• Power Consumption (standby): 3.25W • Power Consumption (fully loaded): 11W• Video Output Connectors: 1 x HDMI Type A, 19-pin, female • Audio Output Connectors: 1 x 3.5mm stereo jack (2ch analogue audio) • RS-232 Serial Port: 1 x 3-pin Phoenix connector • TCP/IP Control: 2 x RJ45, female (1000Mbps x1, 100Mbps x1) • USB Connector: 1 x USB 3.0 Type A, female (USB touch-back only)• USB Pairing Connectors: 1 x USB 2.0 Type A, female, 1 x USB Type C, female • WiFi Antenna Connections: 3 x SMA, female connector, MIMO antennas (2.4G & 5G, WIFI IEEE 802.11 b/g/n/ac up to 1200Mbps) • WiFi Encryption: AES WPA PSK, WPA2 PSK 1 x WMF51 1 x 3-pin Phoenix Connector (RS-232) 3 x Antenna 1 x Mounting Kit 1 x Quick Reference Guide 1 x 12v / 1.5A DC Power Supply Download firmware
