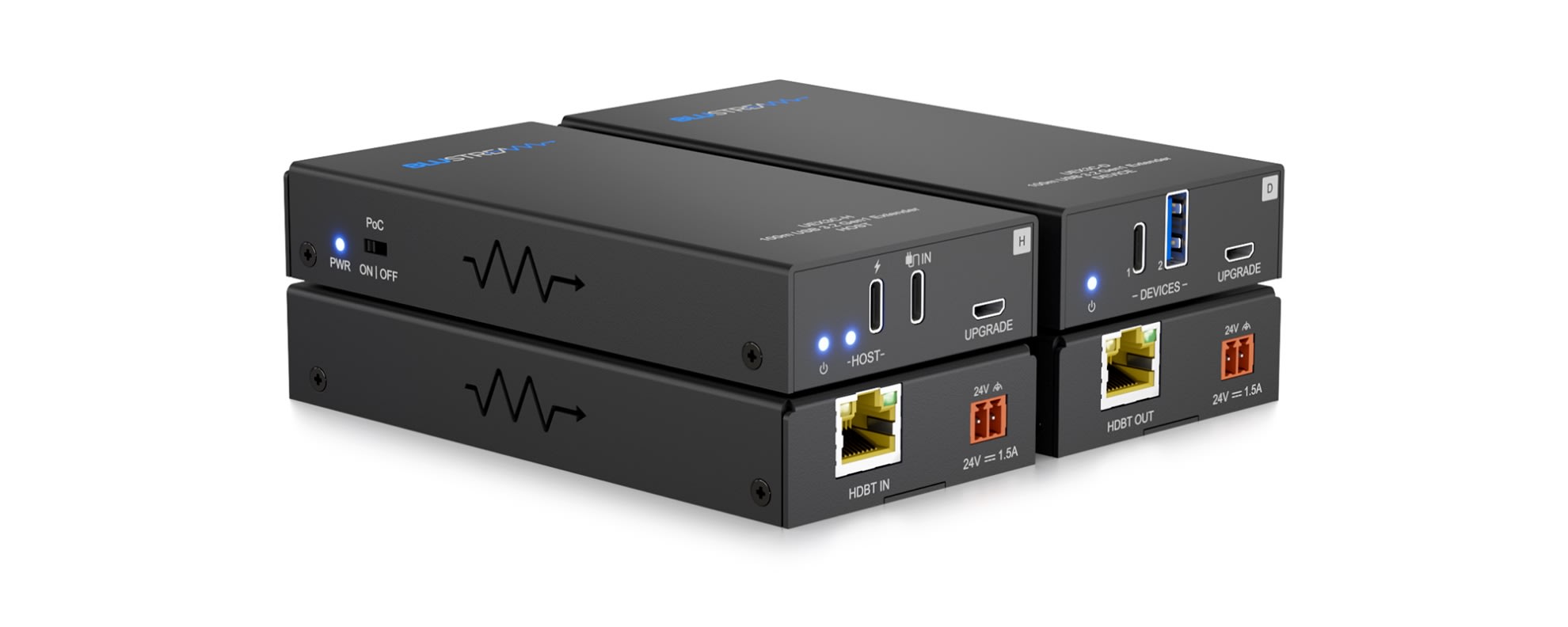

UEX3C-KIT

100m USB 3.2 Gen1 Extender

• Supports USB 3.2 signal extension up to 100m*• Backwards compatible with USB 2.0 & 1.1 devices• USB3.2 Gen1 data transfer rate up to 5Gbps*• 1x USB-C port on the receiver for connection to host device• 1x USB-C host charging port for connection of external power supply to power host device• 1x USB-A & 1x USB-C port on transmitter for connection to devices• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)• Configurable USB device power management via API commands• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit• PoC function can be enabled/disabled via dipswitch• Simple plug and play, no driver installation or setup required.* Signal distribution bandwidth and length are subject to length of device and host USB cables and CAT cable type. CAT6A F/UTP is recommended for use wiht this product. Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through UEX3C-H• USB Host Connectors: 1x USB-C, female• USB Charge Connectors: 1x USB-C, female• CAT Connectors: 1x HDBaseT™ RJ45 connector• Upgrade Port: 1x Micro USB connector• Casing Dimensions (W x D x H): 130mm x 61mm x 22mm• Power Supply: 24V/1.25A DC, 2-pin Phoenix connectorUEX3C-D• USB Host Connectors: 1x USB-C, female, 1x USB-A, female• USB Charge Connectors: 1x USB-C, female• CAT Connectors: 1x HDBaseT™ RJ45 connector• Upgrade Port: 1x Micro USB connector• Casing Dimensions (W x D x H): 130mm x 61mm x 22mm• Power Supply: 24V/1.25A DC, 2-pin Phoenix connectorUEX3C-KIT• USB Hops: 2 x USB hops / tiers for this extender kit• Box Dimensions (W x D x H): 215mm x 150mm x 63mm• Shipping Weight: 1.0kg• Operating Temperature: 32°F to 104°F (-5°C to +55°C)• Storage Temperature: -4°F to 140°F (-25°C to +70°C) 1 x UEX3C-H1 x UEX3C-D2 x Mounting kits1 x 24V/1.5A power supply1 x Quick Reference Guide Download firmware
