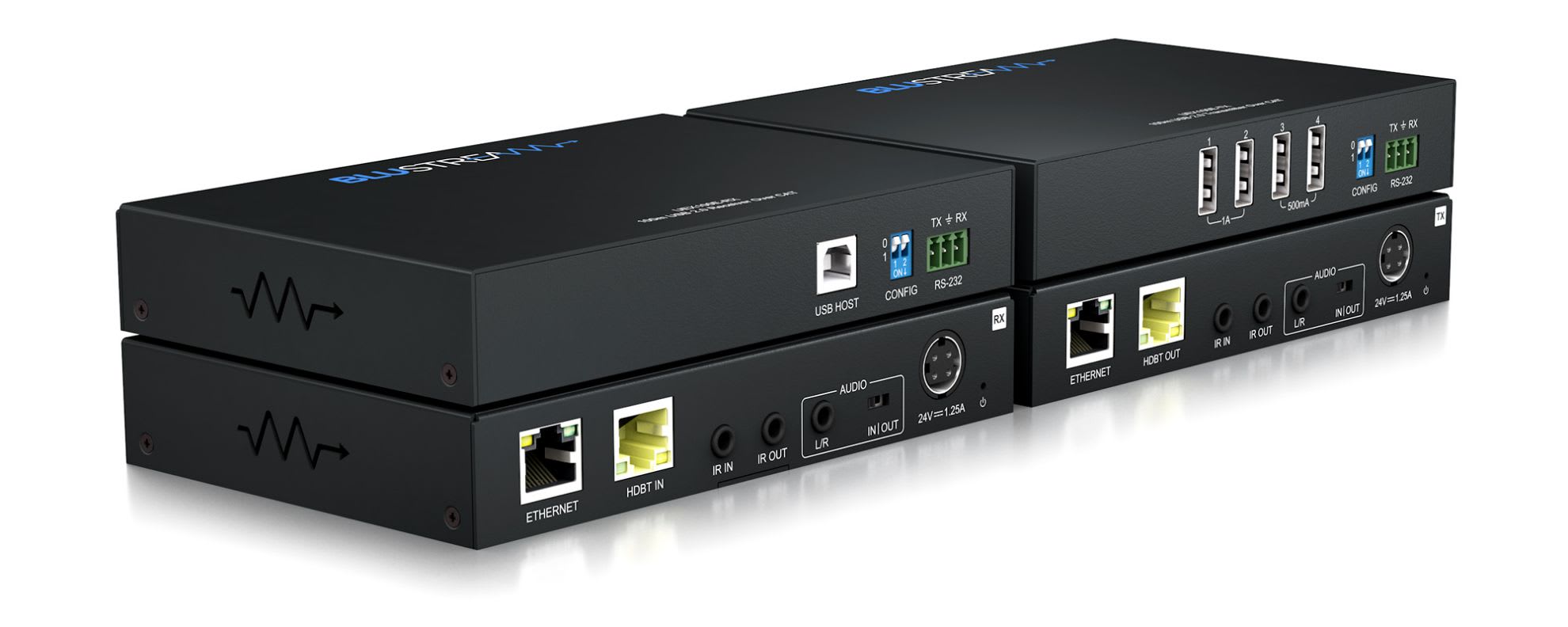

UEX100E-KIT

USB 2.0 HDBaseT™ Extender Set - 100m

• Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*• Supports USB 2.0 signal extension• Backwards compatible with USB 1.1 devices• Transmitted data bandwidth up to 480Mbps (combined)• 1 x USB-B port on the receiver for connection to host device• 4 x USB-A ports on transmitter for connection to devices• USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA• Bi-directional Ethernet pass-through (100Mbps)• Bi-directional IR & RS-232 pass through• Supports 2ch PCM Analogue Audio pass through (direction selectable)• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver• Simple plug and play, no driver installation or setup required*Signal distribution length subject to length of device / host USB cables and CAT cable type UEX100E-RX:• HDBaseT Connector: 1 x RJ45 connector, female• USB Port: 1 x USB-Type B• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo jack)• Ethernet Port: 1 x RJ45 connector, female• RS-232 Serial Port: 1 x 3-pin Phoenix connector• IR Input Ports: 1 x 3.5mm stereo jack• IR Output Ports: 1 x 3.5mm mono jack• Config Switch: 2-pin DIP switchUEX100E-TX:• HDBaseT Connector: 1 x RJ45 connector, female• USB Ports: 4 x USB-Type A• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo Jack)• Ethernet Port: 1 x RJ45 connector, female• RS-232 Serial Port: 1 x 3-pin Phoenix connector• IR Input Ports: 1 x 3.5mm stereo jack• IR Output Ports: 1 x 3.5mm mono jack• Configuration Switch: 2-pin DIP switch • USB Hops: 1 x USB hop / tier for this extender kit• Power Supply: 24V/1.25A DC• Product Dimensions (W x D x H ):  150mm x 100mm x 25mm (TX/RX)• Shipping Weight: 1.6kg• Operating Temperature: 32°F to 104°F (-5°C to +55°C)• Storage Temperature: -4°F to 140°F (-25°C to +70°C) 1 x UEX100E-TX1 x UEX100E-RX1 x USB-A to USB-B cable (1m)1 x 24V/1.25A DC power supply2 x Mounting kits1 x Quick Reference Guide
