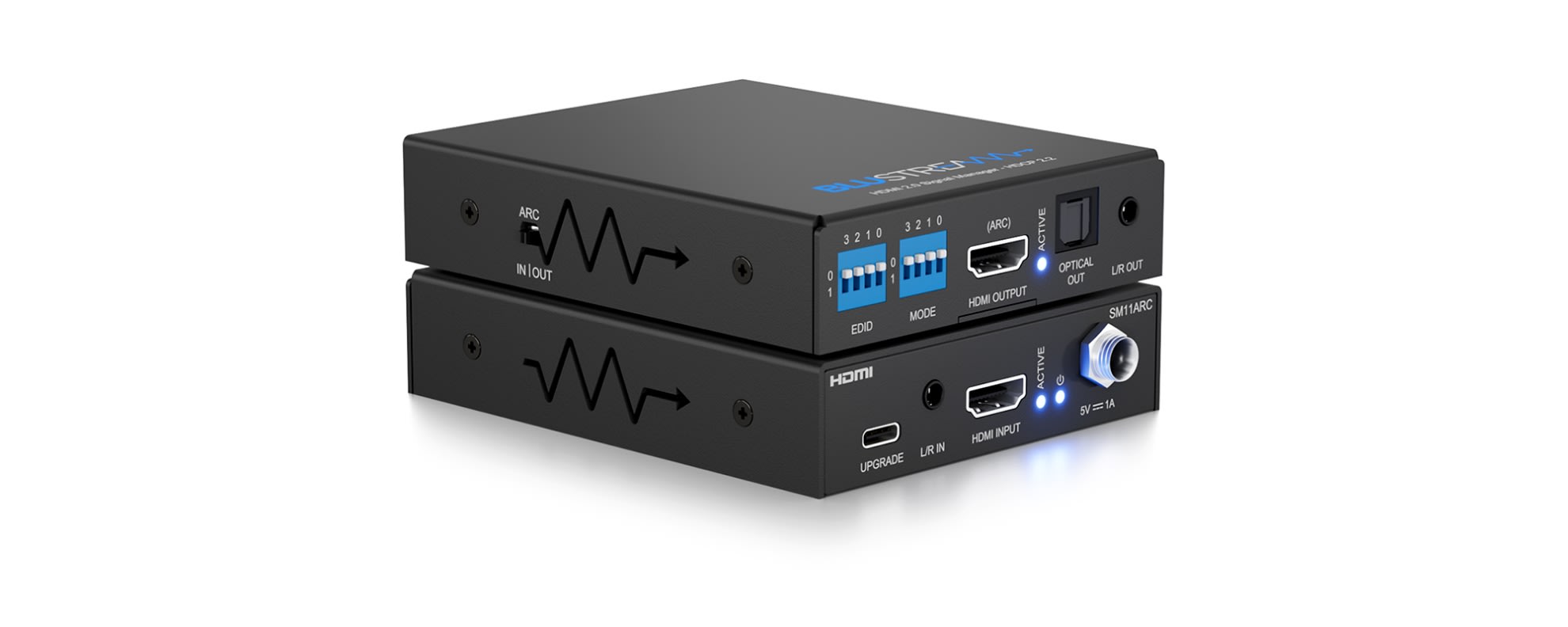

SM11ARC

Advanced HDMI 2.0 HDCP 2.3 Signal Manager with ARC Audio De-Embedder / Embedder

• Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues • Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4) • HDCP 2.3 support • Supports industry standard video resolutions including VGA-WUXGA and 480i-4K 60Hz • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications • Can be configured to work as either a HDMI audio de-embedder or an audio embedder • HDMI audio de-embedded to both analogue L/R audio and optical digital outputs concurrently (analogue audio supports 2ch PCM only) • Embed analogue L/R 2ch audio input onto HDMI output • Extract HDMI ARC audio via optical S/PDIF from a connected ARC capable display (5.1ch maximum) • Extract audio with or without an actual display connected (SM11ARC acts as the HDMI end-point) • Supports CEC bypass (Consumer Electronics Control)* *CEC passthrough active when ARC passthrough is enabled • Video input connectors: 1 x HDMI Type A, 19-pin, female • Video output connectors: 1 x HDMI Type A, 19-pin, female, HDMI ARC capable • Audio input connectors: 1 x analogue left/right audio (3.5mm stereo jack) • Audio output connectors: 1 x Optical Toslink (S/PDIF) & 1x analogue left/right audio (3.5mm stereo jack) • Power Supply: 5V/1A DC• Casing dimensions (W x H x D): 105mm x 23mm x 88mm • Dimensions including connections (W x H x D): 114mm x 23mm x 87mm • Shipping weight: 0.6kg • Operating temperature: 32°F to 104°F (0°C to 40°C) • Storage Temperature: -4°F to 140°F (-20°C to 60°C) 1 x SM11ARC 1 x 5V/1A DC power supply 1 x Mounting Kit 1 x Quick Reference Card
