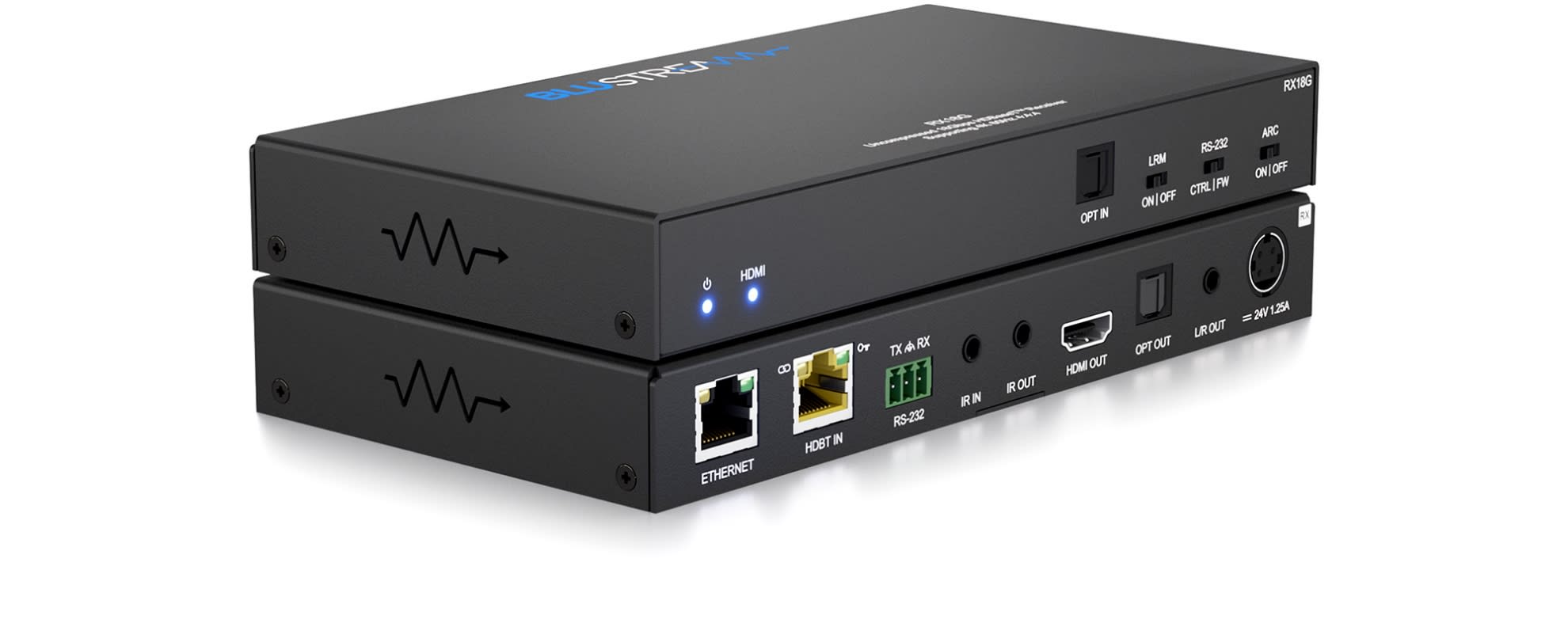

RX18G

Uncompressed 18Gbps HDBaseT™ Receiver

• Advanced HDBaseT™ spec 3.0 technology offering distribution of video and audio over a single CAT6A cable • Supports uncompressed HDMI2.0 18Gbps 4K 60Hz 4:4:4 specification including HDR • Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode) • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K • Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream matrix) • Bi-directional 1Gb Ethernet pass through when used with compatible Blustream matrix solution • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Bi-directional RS-232 pass-through • Supports bi-directional IR pass-through from compatible Blustream matrix • Supports PoC (Power over Cable) from compatible Blustream matrix • HDCP 2.3 support • Recommended receiver to be used with Blustream HMX88-18G and HMX44-18G matrix *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling • Video Input Connectors: 1 x HDBaseT™ RJ45 connector • Video Output Connectors: 1 x HDMI Type A, female • RS232 Input Port: 1 x 3-pin Phoenix connector • Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)• Audio Input Connectors: 1 x Optical (S/PDIF) • Ethernet Port: 1 x RJ45 connector • IR Input Port: 1 x 3.5mm stereo jack • IR Output Port: 1 x 3.5mm mono jack • Mounting Kit included • Casing Dimensions (W x H x D): 190 x 100 x 25mm • Dimensions Including Connections (W x H x D): 190 x 108 x 25mm • Power Supply: 24V/1.25A DC, 4-pin DIN • Shipping Weight: 1.0Kg • Operating Temperature: 32°F to 104°F (-5°C to +55°C) • Storage Temperature: -4°F to 140°F (-25°C to +70°C) 1 x RX18G1 x Mounting Bracket Set1 x Quick Reference Guide Download firmware
