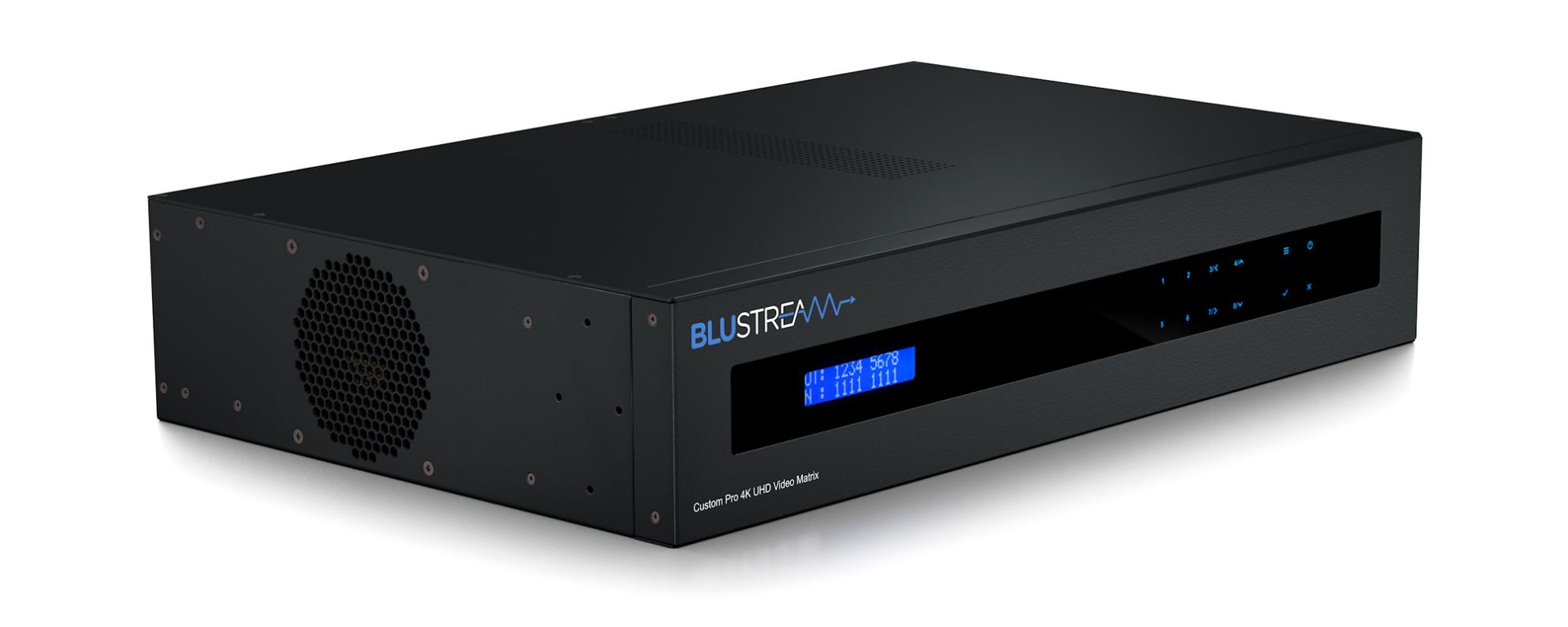

PRO88HDMI-V2

Custom Pro 8x8 HDMI Matrix

• Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs• Supports 18 Gbps 4K UHD video including HDR, HDR10+• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Control via front panel, IR, RS-232 & TCP/IP• 3rd Party drivers available for major control brands• Advanced EDID management• HDCP 2.2 compliant • Video Input Connectors: 8 x HDMI Type A, 19-pin female• Video Output Connectors: 8 x HDMI Type A, 19-pin, female• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)• TCP/IP Control: RJ45, female• Ethernet / Network: RJ45, female• RS-232 Serial Port: DB-9, female• Rack-Mountable: 2U rack height, rack ears included• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet• Shipping Weight: 5kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: 24V/8A DC 1 x Custom Pro Hub Matrix2 x PRO-IN4HAB1 x PRO-8IR-V22 x PRO-OUT4H-V2*Individual boards dispatched separately for assembly by installer1 x 24V/8A Power Supply1 x Remote Control1 x Rack Mounting Kit1 x Quick Reference Guide
