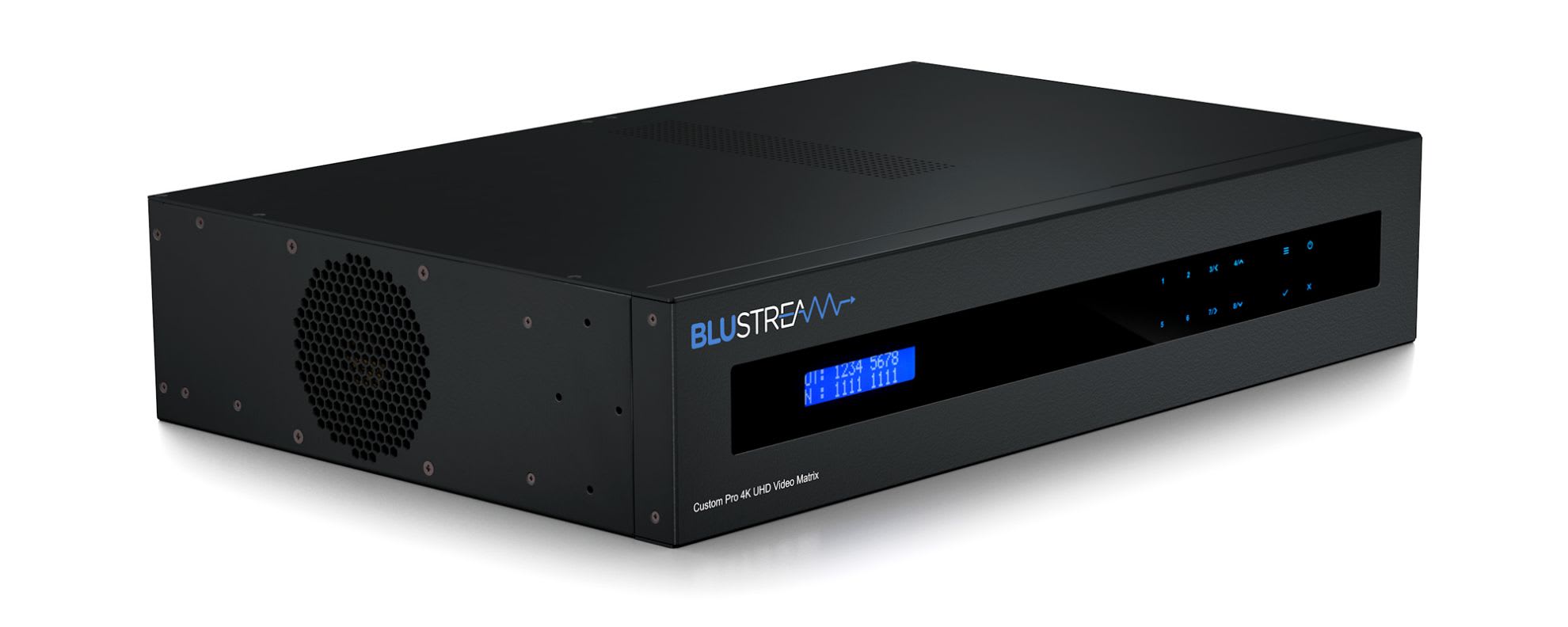

PRO88HBT70CS

Custom Pro 8x8 HDBaseT CSC Matrix - 70m

• HDBaseT™ technology offering distribution of video and audio over a single CAT cable• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs• Supports 4K 60Hz 4:4:4 UHD video up to 40m • Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:   - 1080p 60Hz (for screens that do not support 4K)   - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)• Supports 4K with HDR• Extends HDMI 1080p video up to 70m• 4 x Simultaneous HDMI Outputs• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• 8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs• Analogue audio input can be embedded onto any HDMI input• Web interface module for control and configuration of matrix• Supports bi-directional IR• Supplied with Blustream IR receivers and emitters• Control via front panel, IR, RS-232 and TCP/IP• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers• 3rd Party drivers available for major control brands• 2U Design for 19" rack mount integration - Mounting kit included• Advanced EDID management• HDCP 2.2 compliant• To be used with the HEX70CS-RX receivers • Video Input Connectors: 8 x HDMI Type A, 19-pin, female• Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)• TCP/IP Control: RJ45, female• Ethernet / Network: RJ45, female• IR Input Ports: 9 x 3.5mm stereo jack• RS-232 Serial Port: DB-9, female• Rack Mountable: 2U rack height, rack ears included• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet• Shipping Weight: 5kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: 24V/8A DC 1 x Custom Pro Hub Matrix2 x PRO-IN4HAB1 x PRO-8ABV1 x PRO-8IR-V21 x PRO-OUT4TLS-V21 x PRO-OUT4TL*Individual boards dispatched separately for assembly by installer1 x 24V/8A Power Supply1 x Remote Control1 x Rack Mounting Kit1 x Quick Reference Guide Download firmware
