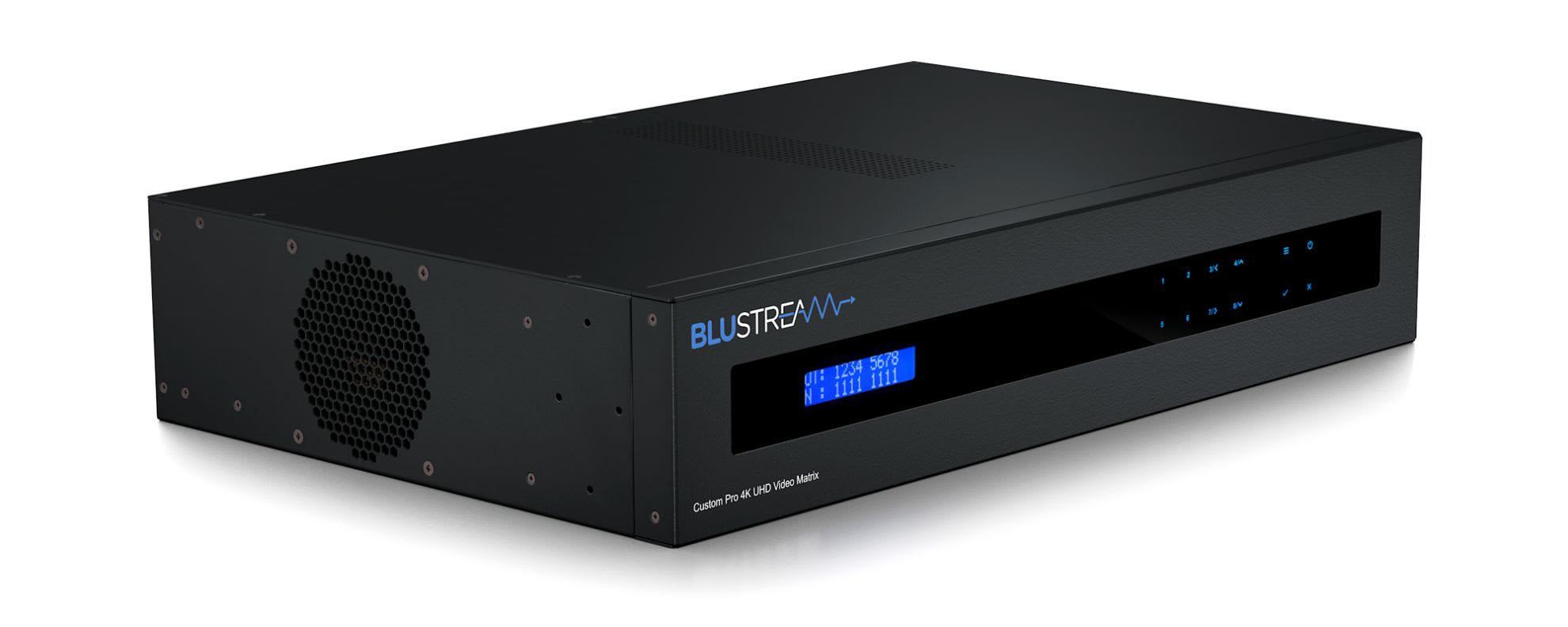

PRO48HBT70

Custom Pro 4x8 HDBaseT™ Matrix - 70m

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency• Supports 4K UHD video up to 40m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Control of Matrix via front panel, RS-232, TCP/IP and Web GUI• Features 8 x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs• 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers• Quick release card module fittings allowing simple population of input and output cards• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards• Web interface module for control and configuration of matrix• 3rd Party drivers available for all major home control brands• Advanced EDID management• HDCP 2.2 compliant • Rack Mountable: 2U rack height, rack ears included• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: 24V/6A DC 1 x PRO48HBT70 Matrix1 x 24V/6A Power Supply1 x Remote Control1 x Rack Mounting Kit1 x Quick Reference Guide
