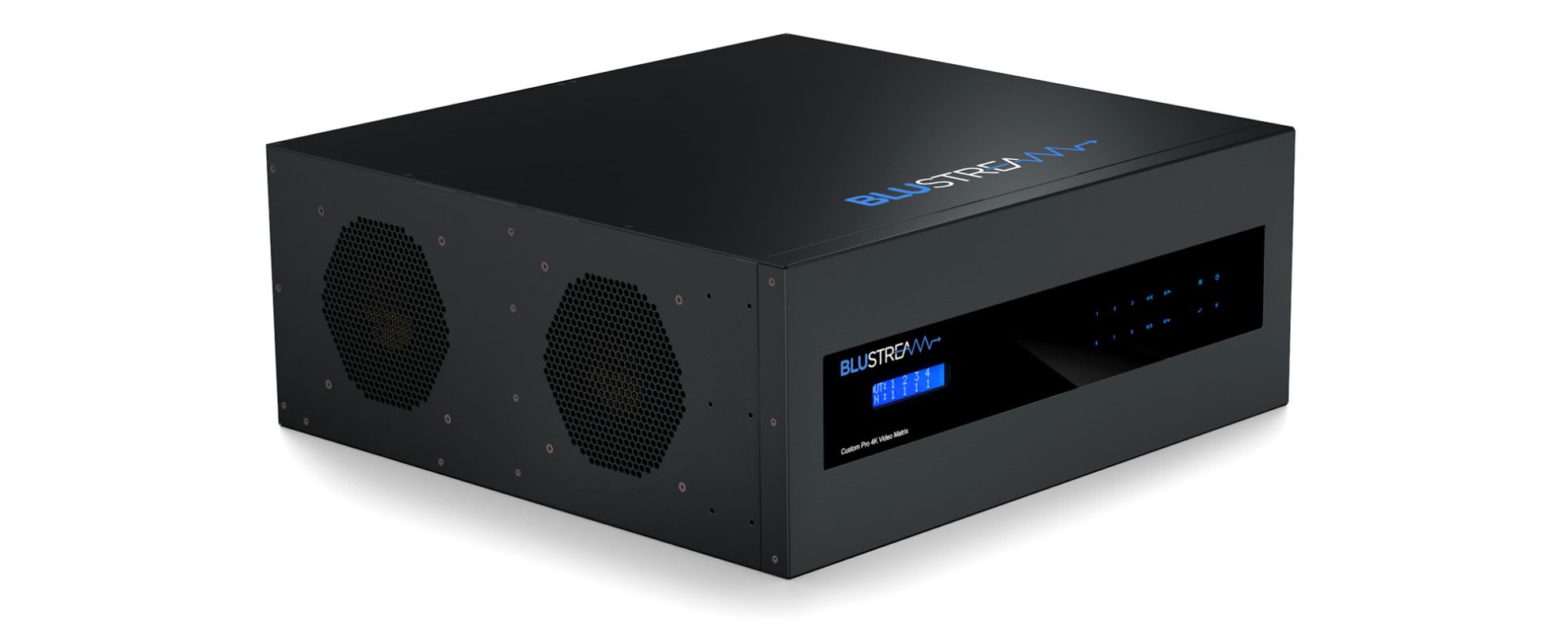

PRO16HBT100CS

Custom Pro 16x16 HDBaseT™ CSC Matrix - 100m

• Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):   - 1080p@ 60Hz  (for screens that do not support 4K)   - 4K 60Hz 4:2:0  (for screens that do not support full 4K 60Hz 4:4:4)• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs• Extend 16 x IR outputs for routed control of local source equipment• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)• Audio breakout board with line-level volume control• Web browser interface for control and configuration of matrix• Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers• 3rd Party drivers available for major commercial & residential control brands• Advanced EDID management • HDCP 2.2 compliant• Used with Blustream HEX100CS-RX receivers (sold separately)• Used with Blustream HEX70CS-RX receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately) • Video Input Connectors: 16 x HDMI Type A, 19-pin, female• Video Output Connectors: 12 x HDMI Type A, 19-pin, female, 16 x HDBaseT™ RJ45 connector• Source Audio Output Connectors: 16 x 3.5mm stereo jack (L/R)• Zone Audio Output Connectors: 16 x 3.5mm stereo jack (L/R), 16 x RCA Coaxial Digital (S/PDIF)• Audio Input Connectors: 16 x 3.5mm stereo jack (L/R)• RS-232 Serial Ports: 1 x 9-pin RS-232 connector• IR Input Ports: 16 x 3.5mm stereo jack• IR Output Ports: 16 x 3.5mm mono jack• TCP/IP Control: 1 x RJ45 connector, female• Rack Mountable: 4U rack height, rack ears included• Casing Dimensions (W x H x D): 440mm x 173mm x 422mm without feet• Dimensions Including Connections (W x H x D): 440mm x 178mm x 430mm with feet• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: Internal 100-240V AC, IEC cable supplied 1 x Custom Pro Hub 16 Matrix4 x PRO-IN4HAB2 x PRO-8ABV3 x PRO-OUT4HTCS1 x PRO-OUT4TCS*Individual boards dispatched separately for assembly by installer1 x Remote Control1 x Rack Mounting Kit5 x IR Receiver4 x IR Emitter5 x IR Control Cable - 3.5mm-3.5mm Cable1 x Quick Reference GuidePower Cable/s Download firmware
