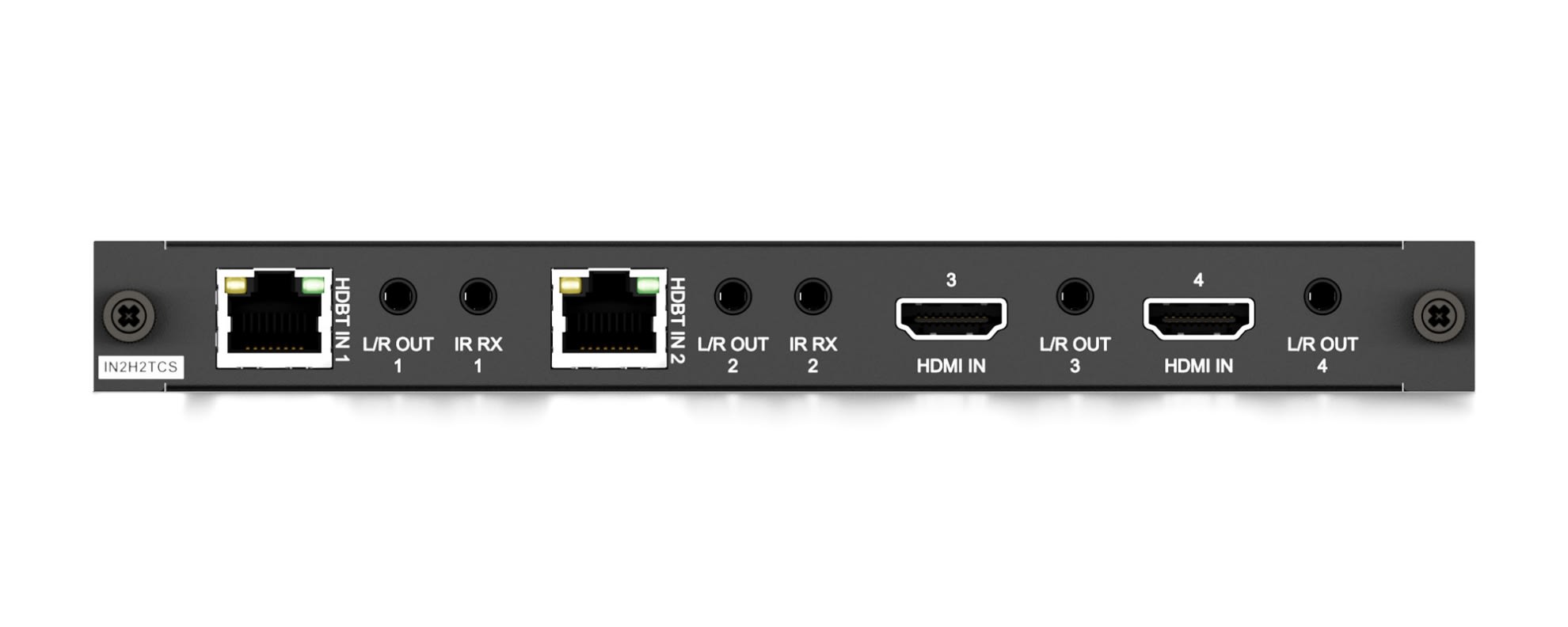

PRO-IN2H2TCS

4-Way HDMI 2.0 & HDBaseT™ CSC Input Board

• Features 2 x HDMI and 2 x HDBaseT™ inputs which can be independently routed to video output cards• HDMI and HDBaseT™ inputs support HDMI 2.0 18Gbps specification including up to 4K UHD 60Hz 4:4:4 and HDR resolutions*• HDBaseT™ inputs support signal distribution up to a distance of 100m @ 1080p (4K 60Hz 4:4:4 UHD @ 70m) when used with a compatible Blustream CSC Transmitter**• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Each HDMI / HDBaseT™ input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)• HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub• HDCP 2.2 Support*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified. For HDMI 2.0 18Gbps video distribution the PRO-IN2H2TCS must be used with a Blustream CSC based HDBaseT™ Transmitter**The PRO-IN2H2TCS does not support PoC (Power over Cable) to connected Blustream HDBaseT™ Transmitter units. A separate power supply unit must be specified • Video Input Connectors: 2 x HDMI Type A, 19-pin, female,  2 x HDBaseT™ RJ45 connector• Audio Output Connectors: 4 x Analogue Left/Right audio (3.5mm stereo jack)• IR Input Ports: 2 x 3.5mm stereo jack• Card Dimensions (W x H x D): 170mm x 22mm x 182mm• Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm• Shipping Weight: 0.5kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
