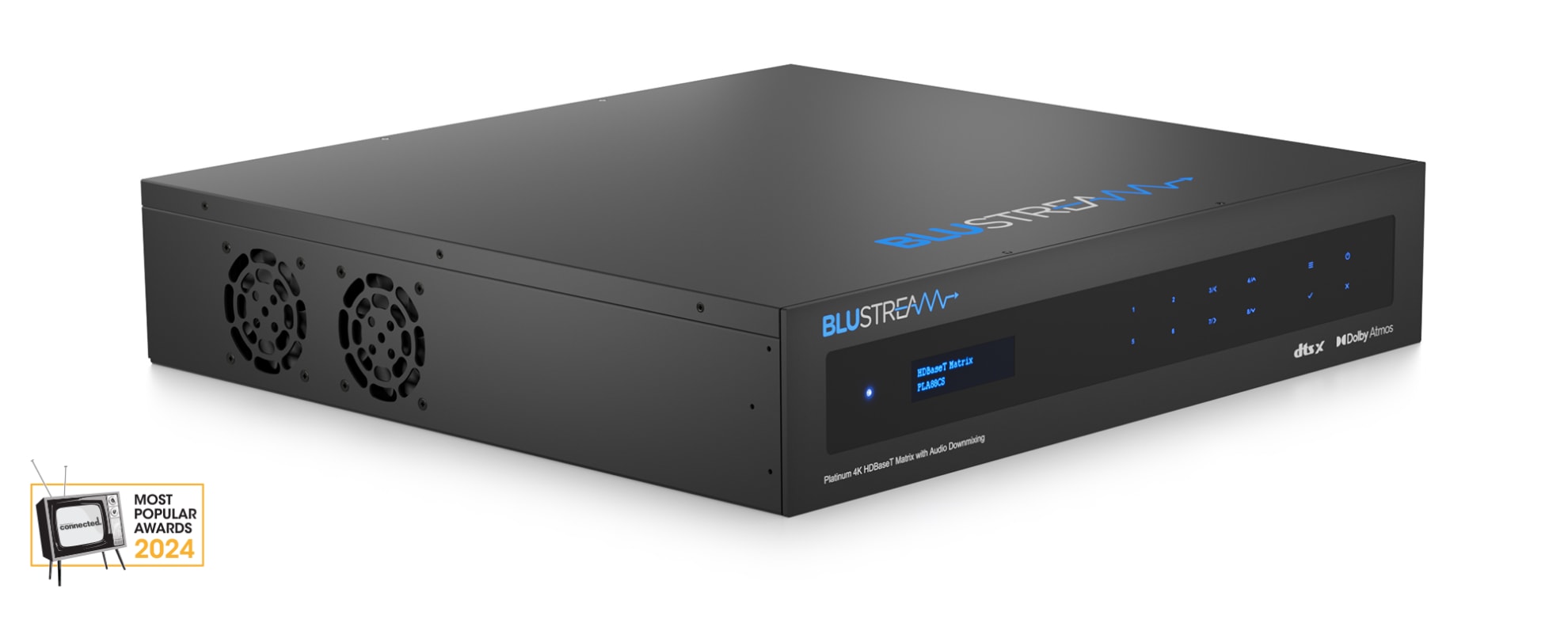

PLA88CS

Platinum 8x8 HDBaseT™ CSC AV Matrix with Audio Downmixing - 150m

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR• 4 Outputs featuring Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone• Extends HDMI up to distance of 150m at 1080p, and 4K UHD video up to 100m (up to 4K 60Hz 4:4:4)• Features 8x HDMI inputs which can be independently routed to 8x HDBaseT™ + HDMI outputs• Independent video scaling on outputs• Supporting Dolby Audio® Technology• Up to 24x16 Audio Matrix independently controllable from video• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K• Bi-directional IR & RS-232 from all input and output locations (with compatible Transmitters & Receivers)• Integrated Ethernet (100Mbps) switch (LAN Serving) when used with Blustream RX150CS Receivers• Web interface module for control and configuration of Matrix• Control of Matrix via front panel , IR, RS-232 and TCP/IP• Supports PoC (Power over Cable) to power compatible RX150CS Receivers• 3rd party drivers available for all major control brands• HDCP 2.2 compliant with advanced EDID management• 2U Design for 19” rack mount integration - mounting kit included• 4x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™/ HDMI outputs- HDMI audio breakout to coaxial digital and analogue L/R audio outputs with variable pre-amp line level control- Supports ARC (Audio Return Channel) via HDMI or optical digital inputs from compatible RX150CS Receivers- Supports Dolby Audio® and DTS Audio breakout and down mixing from HDMI inputs to 2ch audio ® Dolby Audio is a registered trademark of Dolby Laboratories Licensing Corporation. • Video Input Connectors: 8 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connectors• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors• Audio Input Connectors: 2 x Analogue audio L/R (3.5mm stereo Jack), 2 x Optical (S/PDIF)• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)• RS-232 Serial Port: 9 x 3-pin Phoenix connector• TCP/IP Control: 1 x RJ45, female• Ethernet/Network: 1 x RJ45, female• IR Input Ports: 10 x 3.5mm stereo jack• IR Output Ports: 9 x 3.5mm mono jack• Rack Mountable: 2U rack height, rack ears included• Casing Dimensions (W x H x D): 440mm x 87mm x 361mm (without feet)• Shipping Weight: 8.8kg• Operating Temperature: 32°F to 104°F (0°C to +40°C)• Storage Temperature: -4°F to 140°F (-20°C to +60°C)• Power Supply: Internal 100-240V ACNOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. 1 x PLA88CS1 x Rack Mounting Kit1 x Remote Control8 x IR Emitters9 x IR Receivers1 x IR Control Cable - 3.5mm to 3.5mm1 x Serial Cable - DB9 to 3-pin Phoenix Connector8 x 3-Pin Phoenix Connector1 x Quick Reference GuideIEC Power Cable(s) Download firmware
