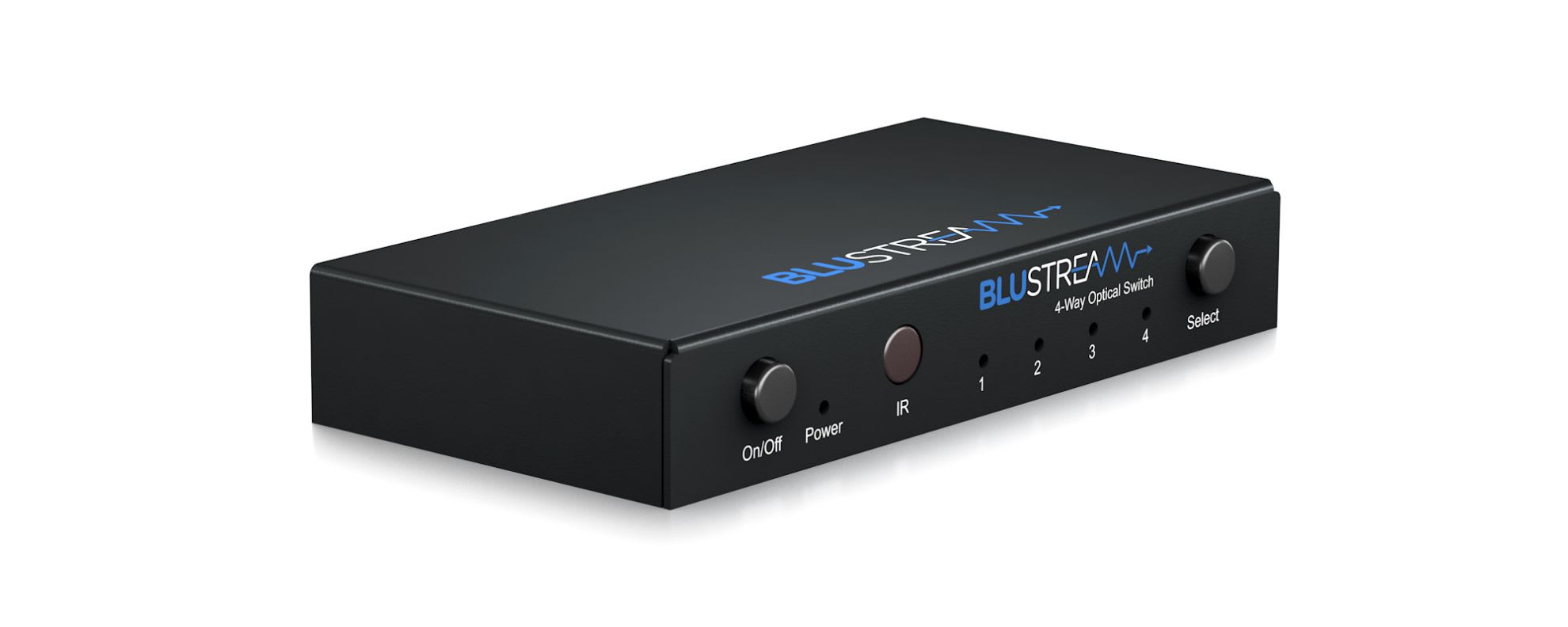

OPT41AU

4-Way Optical Switch with built-in DAC and Audio Conversion

• Features 4 x optical S/PDIF digital inputs which can be switched to single optical output• DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left / right stereo audio output• Built-in digital audio converter converts selected optical audio input to coaxial digital output• Outputs optical digital, coaxial digital and analogue left / right stereo audio concurrently• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Ultra low jitter and high fidelity design• Input selection button on front panel to toggle between optical inputs• IR receiver on front panel to switch inputs and turn on / off audio outputs using supplied IR remote• External IR input can be used to extend IR with Blustream IR receiver cable • Audio Input Connectors: 4 x Optical (S/PDIF)• Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)• IR Input Ports: 1 x 3.5mm stereo jack• Product Dimensions (W x D x H): 140 x 80 x 25mm (with connections)• Product Dimensions (W x D x H): 140 x 70 x 25mm (without connections)• Product Weight: 0.25kg (excluding accessories)• Carton / Box Dimensions (W x D x H): 210 x 125 x 90mm• Shipping Weight: 0.5kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: 5V/1A DC, screw type connector• Mounting Kit Included 1 x OPT41AU1 x IR Remote Control1 x 5V/1A DC Power Supply1 x Mounting Kit1 x User Manual
