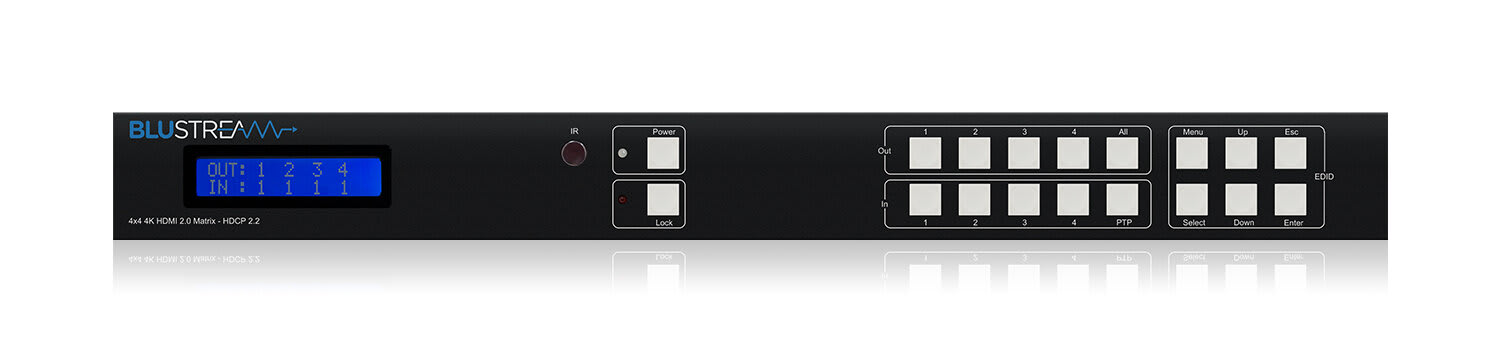

MX44AB-V2

4x4 HDMI Matrix

• Features 4 x HDMI inputs which can be independently routed to 4 x HDMI outputs• Supports 4K UHD video (up to 4K @60Hz 4:4:4)• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K• Supports 3D signal display• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently• Web interface module for control and configuration of the matrix• Control via front panel, IR, RS-232 and TCP/IP• IR routing• Supplied with Blustream IR receivers and emitters• 3rd Party drivers available for major control brands• Advanced EDID management• HDCP 2.2 compliant • Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, locking• Audio Output Connectors: 4 x RCA (SPDIF), 4 x Analogue audio L/R (3.5mm stereo jack)• RS-232 Serial Port: DB-9, female• IR Input Ports: 5 x 3.5mm stereo jack• IR Output Ports: 4 x 3.5mm mono jack• Mounting Kit included• Product Dimensions (W x D x H): 440mm x 235mm x 44mm• Shipping Weight: 4.7kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: 12V/3A DC 1 x MX44AB-V21 x 12V/3A DC Power Supply1 x Remote Control4 x IR Emitter5 x IR Receiver1 x IRCAB 3.5mm to 3.5mm IR Cable1 x Mounting Kit1 x User Manual Download firmware
