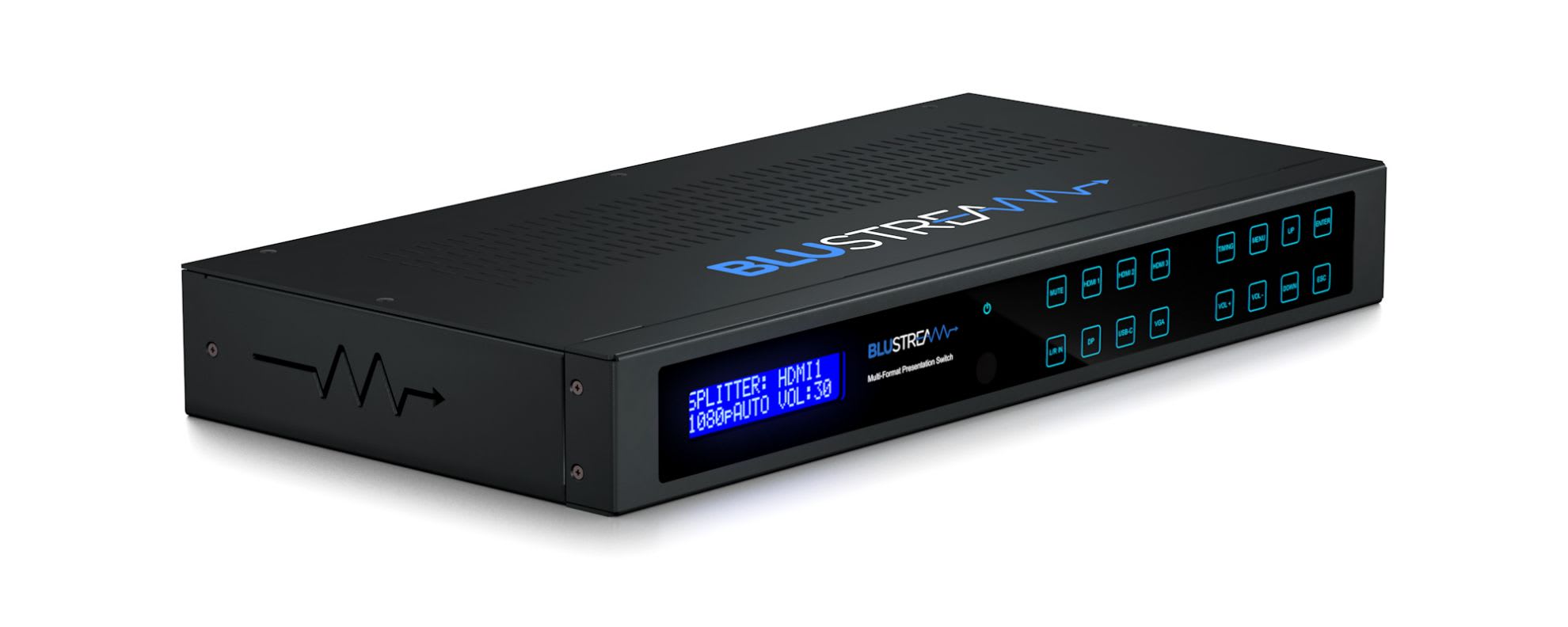

MFP62

6 Input 2 Output Multi-Format Presentation Switcher

• Features 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ & 1 x VGA input which can be routed to dual HDMI outputs• Supports HDMI 2.0 18Gbps specification including HDR• Supports resolutions up to 4K UHD 60Hz 4:4:4• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Dual HDMI outputs with video scaling• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 & Alt mode• Supports DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently• Features audio mixer with independent level adjustment• Analogue audio embedding• MIC input supports line level, 48V/0.5mA Phantom power or 1ch balanced / un-balanced audio• Web interface module for control and configuration of switch• Control via front panel, IR, RS-232 and TCP/IP• HDCP 2.2 compliant with advanced EDID management• • Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Display Port™, 1 x VGA• Video Output Connectors: 2 x HDMI Type A, 19-pin, female• Audio Input Connectors: 1 x analogue left / right audio (3.5mm stereo jack)• MIC Input Connectors: 1 x 3-pin Phoenix connector• Audio Output Connectors: 1 x RCA (S/PDIF), 2 x RCA analogue left / right• RS-232 Serial Ports: 1 x 9-pin RS-232 connector• TCP/IP Control: 1 x RJ45, female• IR Input Ports: 1 x 3.5mm stereo jack• Product Upgrade: 1 x Micro USB female• Rack-Mountable: 1U rack height, rack ears included• Casing Dimensions (W x H x D): 344mm x 44mm x 168mm, without feet• Shipping Weight: 3kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C)• Power Supply: 24V/1A DC 1 x MFP621 x Remote Control1 x 24V/1A DC Power Supply1 x Rack Mounting Kit1 x IR Receiver1 x Quick Reference Guide Download firmware
