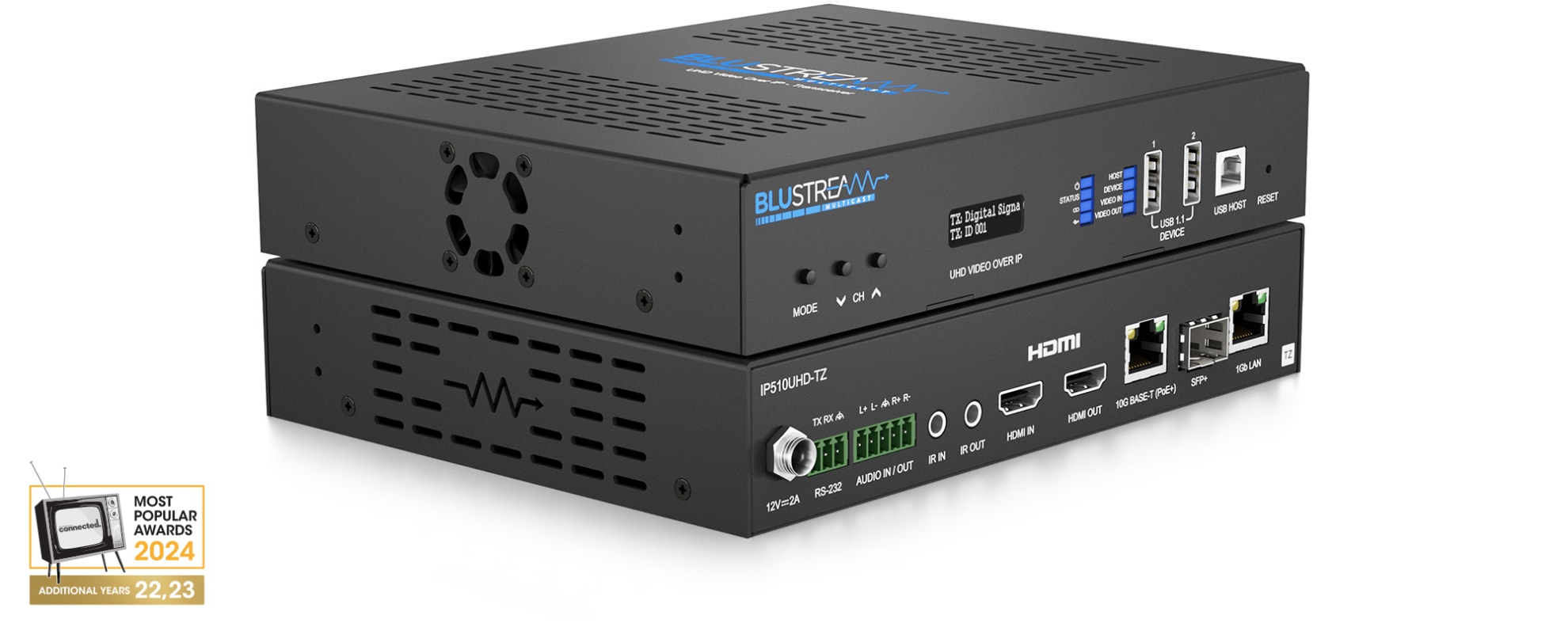

IP510UHD-TZ

4K 60Hz 4:4:4 SDVoE Simultaneous Transceiver via 10Gb Managed Network

• Advanced SDVoE 4K UHD video over 10Gb managed network with visually lossless compression and zero latency• HDMI 2.0 18Gbps specification with pass-through for resolutions up to 4K 60Hz 4:4:4, and resolutions supporting 10/12-bit colour, and HDR*• Transceiver can be used simultaneously as an encoder (TX) and decoder (RX) from a single 10Gbps connection• Supports video scaling, and single-frame switching where scaling is deployed• Multi-view output capabilities allowing for up to 16 independent sources to be displayed on a single output• Video wall functionality for creating arrays of differing sizes and layouts• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Fixed signal routing capabilities, for creating a permanent connection between any TX and RX for dedicated IR, RS-232, CEC and USB 1.1 control pass-through• USB end-to-end / point-to-point pass-through (USB 1.1 spec only)• Analogue L/R audio embedding and audio breakout (balanced and unbalanced)• 10/100/1000BaseT Ethernet pass-through• Supports bi-directional 5V or 12V IR pass-through• 10Gbps copper or SFP+ network connectivity• PoE+ (Power over Ethernet) to power Blustream Multicast products from a PoE+ switch• HDCP 2.2 compliant with advanced EDID management• Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)• Fully interoperable with the Blustream IP500UHD-TZ (selectable transceiver)• The Blustream SDVoE platform features 4 operational modes:   -  Matrix distribution (requires 10Gb network switch)   -  Video wall (requires 10Gb network switch)   -  Multiview mode (requires 10Gb network switch)   -  One-to-one HDMI extender (no network switch required) *HDR content requires Genlock mode to be enabled (video scaler in pass-through mode) Please note: the Blustream SDVoE system distributes HDMI video over 10Gb managed network hardware. It is advised that the products are connected on an independent network switch to prevent interference or drop in signal performance. Please take care to make sure that you have read and understood the instructions in the User Manual, and that you have set up the network switch correctly prior to connecting the SDVoE products. • Video input: 1 x HDMI Type A, female• Video output: 1 x HDMI Type A, female• Audio input / output: 1 x 5-pin Phoenix connector• Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through• RS-232 serial port: 1 x 3-pin Phoenix connector• USB/KVM Port: 1 x USB-Type B (host) , 2 x USB-Type A (device)• IR input: 1 x 3.5mm stereo jack• IR output: 1 x 3.5mm mono jack• Dimensions (W x D x H ): 195mm x 153mm x 37mm• Dimensions including connections (W x D x H ): 191mm x 160mm x 37mm , without feet• Shipping weight (Kit): 1.05kg• Operating temperature: 32°F to 104°F (0°C to 40°C)• Storage temperature : -4°F to 140°F (-20°C to 60°C)• Operating altitude: < 2,000m 1 x IP510UHD-TZ Transceiver1 x IR Receiver1 x IR Emitter4 x Rubber Feet1 x Mounting Kit1 x Quick Reference Guide Download firmware
