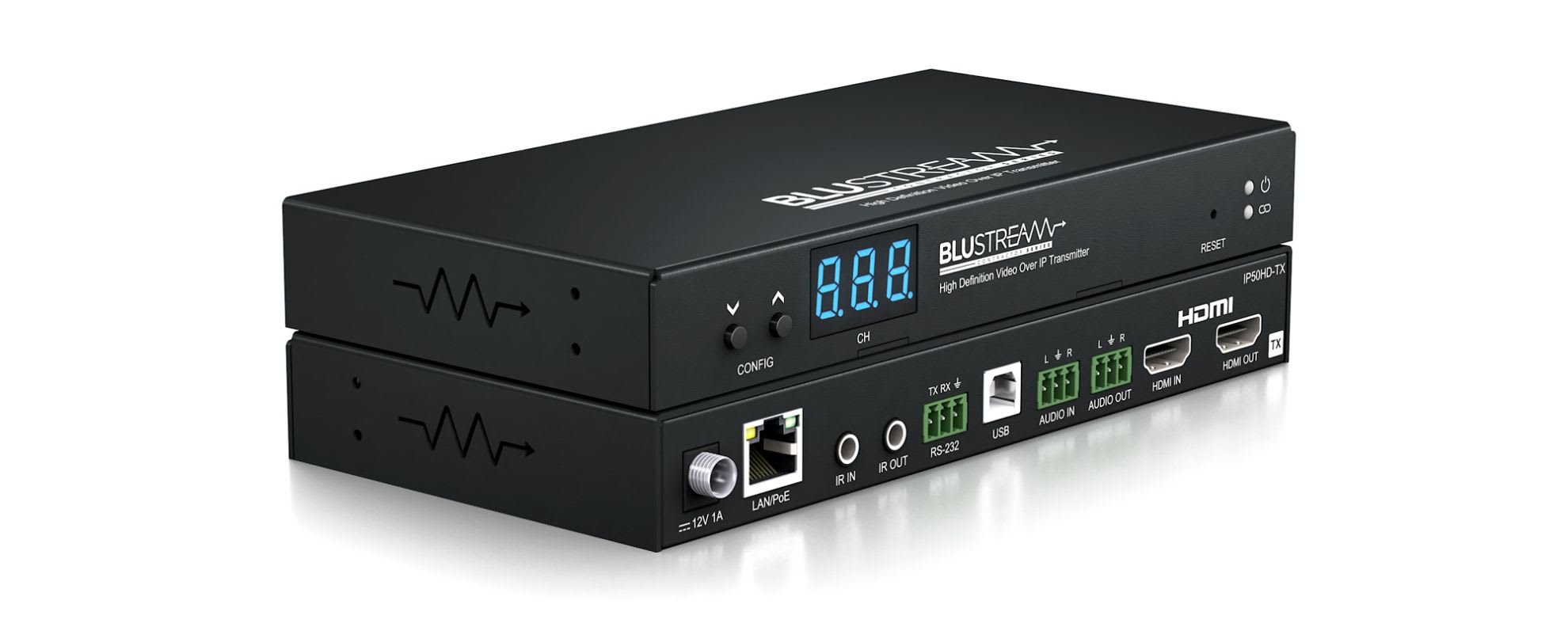

IP50HD-TX

1080p HD Video over IP Transmitter via 100Mbps Network

• Advanced HD video, control and KVM over network infrastructure• Extends HDMI up to a distance of 100m over a single CAT cable• Supports unicast transmission over unmanaged networks• Supports multicast transmission for large managed networks• Supports up to 1080p @ 60Hz• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices• Supports PCM 2.0 channel audio only• Advanced signal management for independent routing of IR, RS-232, USB1.1 for KVM, and combined video/audio• PoE (Power over Ethernet) to power product from a PoE switch• HDCP1.4 compliant with advanced EDID management• Analogue L/R audio embedding and audio breakout (2ch PCM only)• Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)• Features 2 operational modes:   - Matrix distribution (requires 100Mbps network switch)   - One-to-one HDMI extender (no network switch required) • Video input: 1 x HDMI Type A, 19-pin, female, locking• Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, 19-pin, female, locking• Latency: 3 frames (<120ms subject to video compression, frame rate and scaling) No latency on HDMI Loop out• Audio input: 1 x 3-pin Phoenix connector• Audio output: 1 x 3-pin Phoenix connector• Ethernet port: 1 x LAN RJ45 connector• RS-232 serial port: 1 x 3-pin Phoenix connector• USB/KVM Host Port: 1 x USB-Type B• IR input: 1 x 3.5mm stereo jack• IR output: 1 x 3.5mm mono jack• PoE draw: 3.7W (typical), 4.0W (max load)• Mounting kit included• Dimensions (W x D x H): 190mm x 95mm x 25mm • Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature: -4°F to 140°F (-20°C to 60°C) 1 x IP50HD-TX1 x IR Receiver1 x IR Emitter1 x Mounting Kit4 x Rubber Feet Download firmware
