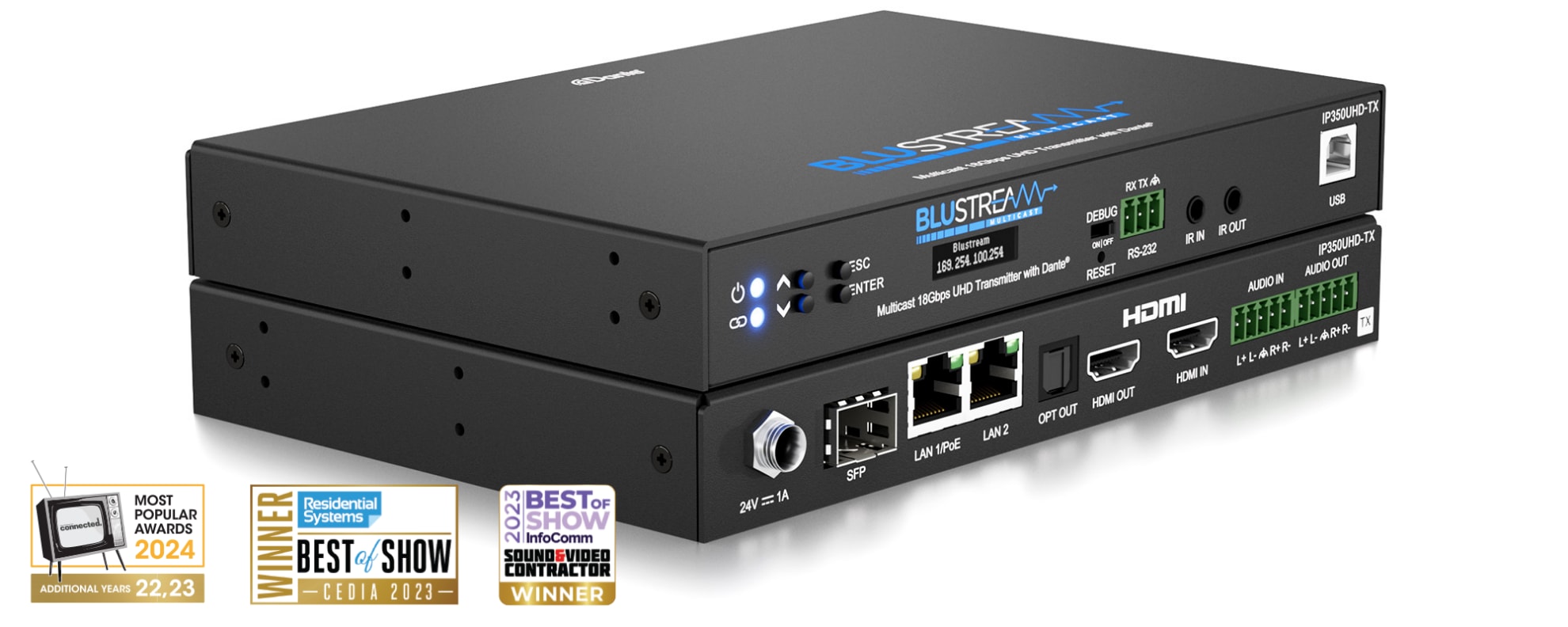

IP350UHD-TX

4K 60Hz 4:4:4 Video over IP Transmitter via 1Gb Managed Network with Dante

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals• Virtually unlimited system size• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable• SFP port for long-distance signal distribution over fibre• HDMI loop-out for integrating local displays or cascading to multiple devices• Supports up to 4K UHD 60Hz 4:4:4• Supports HDR• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output• HDMI ARC, eARC or optical audio return from a display connected to an IP300UHD or IP350UHD receiver• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video• PoE (Power over Ethernet) to power Blustream unit from PoE switch• HDCP 2.2 compliant with advanced EDID management• Balanced/unbalanced analogue L/R audio embedding• Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals• OLED front panel display for advanced system information and manual configuration• Optional 24V power supply (should Ethernet switch not support PoE)• Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products• IP300UHD/IP350UHD platform features 4 operational modes:   - Matrix distribution (requires 1Gb network switch)   - Video wall (requires 1Gb network switch)   - One-to-one HDMI extender (no network switch required)   - One-to-many HDMI extender (no network switch required) • Video Input: 1 x HDMI Type A, female• Video Output: 1 x LAN RJ45 connector (LAN1/PoE), 1 x SFP connector, 1 x HDMI Type A, female• Audio Input: 1 x 5-pin Phoenix connector• Audio Output: 1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)• Dante Port: 1 x LAN RJ45 connector (LAN2)• Fibre Port: 1 x SFP connector (fibre module not supplied)• RS-232 Serial Port: 1 x 3-Pin Phoenix connector• USB/KVM Port: 1 x USB2.0-type B for KVM• IR Input: 1 x 3.5mm stereo jack• IR Output: 1 x 3.5mm mono jack• Dimensions (W x D x H ): 190mm x 128mm x 25mm• Packaging Dimensions (W x D x H): 260mm x 180mm x 55m• Unit Weight: 0.75kg• Power Consumption: 12W (max)• Shipping Weight: 1kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature : -4°F to 140°F (-20°C to 60°C)• Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU 1 x IP350UHD-TX1 x IRR Receiver1 x IRE1 Emitter2 x Audio 5-pin Phoenix Connector1 x Serial 3-pin Phoenix Connector1 x Mounting Kit Download firmware
