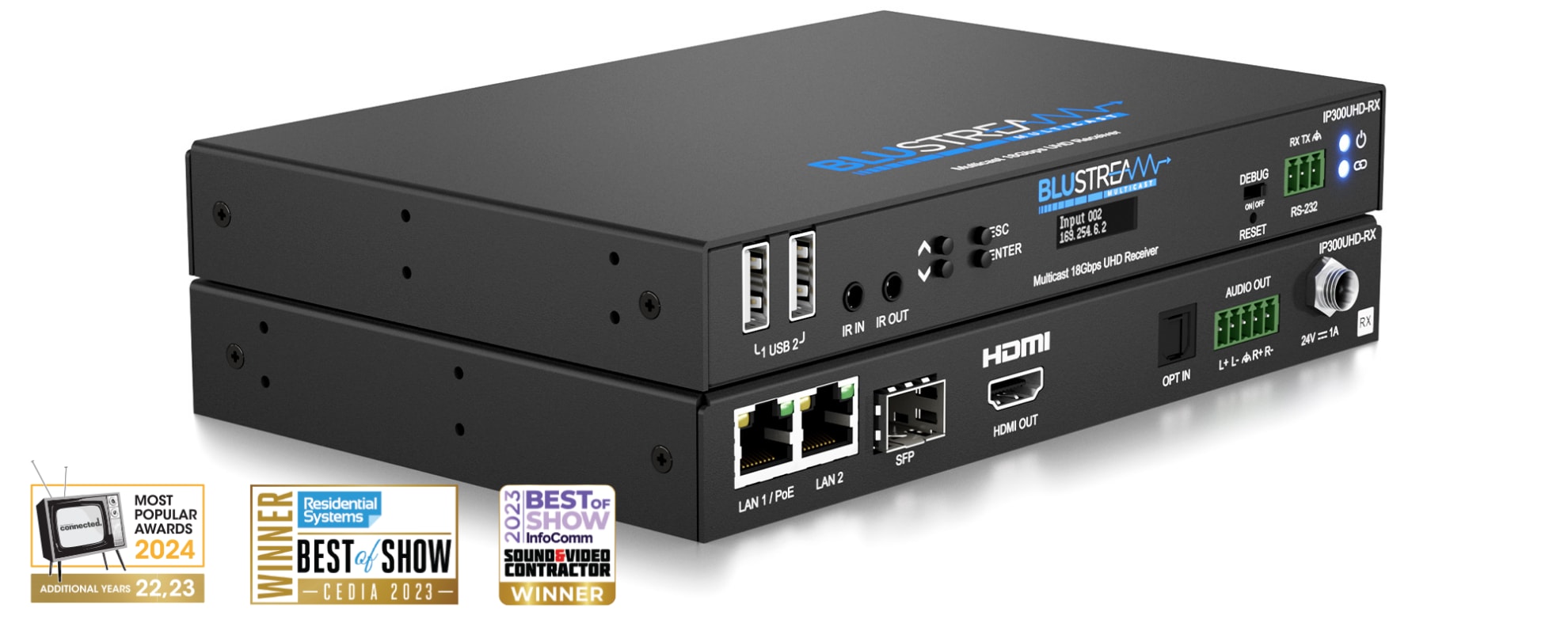

IP300UHD-RX

4K 60Hz 4:4:4 Video over IP Receiver via 1Gb Managed Network

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals• Virtually unlimited system size• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable• SFP port for long-distance signal distribution over fibre• Supports up to 4K UHD 60Hz 4:4:4• Supports HDR• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video• PoE (Power over Ethernet) to power Blustream unit from PoE switch• HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system• Analogue L/R audio output support both balanced and unbalanced audio signals• HDMI ARC, eARC or optical audio return from display to an IP300UHD or IP350UHD transmitter• LAN loop-out for one-to-many extender mode• OLED front panel display for advanced system information and manual configuration• Optional 24V power supply (should Ethernet switch not support PoE)• Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products• Features 4 operational modes:   - Matrix distribution (requires 1Gb network switch)   - Video wall (requires 1Gb network switch)   - One-to-one HDMI extender (no network switch required)   - One-to-many HDMI extender (no network switch required) • Video Input: 1 x LAN RJ45 connector, 1 x SFP connector• Video Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connector• Audio Input: 1 x Optical (S/PDIF)• Audio Output: 1 x 5-pin Phoenix connector• Ethernet Port: 2 x LAN RJ45 connector• Fibre Port: 1 x SFP connector (fibre module not supplied)• RS-232 Serial Port: 1 x 3-Pin Phoenix connector• USB/KVM Port: 2 x USB2.0-type B for KVM• IR Input: 1 x 3.5mm stereo jack• IR Output: 1 x 3.5mm mono jack• Dimensions (W x D x H ): 190mm x 128mm x 25mm• Packaging Dimensions (W x D x H): 260mm x 180mm x 55m• Unit Weight: 0.75kg• Power Consumption: 9W (max)• Shipping Weight: 1kg• Operating Temperature: 32°F to 104°F (0°C to 40°C)• Storage Temperature : -4°F to 140°F (-20°C to 60°C)• Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU 1 x IP300UHD-RX1 x IRR Receiver1 x IRE1 Emitter1 x Audio 5-pin Phoenix Connector1 x Serial 3-pin Phoenix Connector1 x Mounting Kit Download firmware
