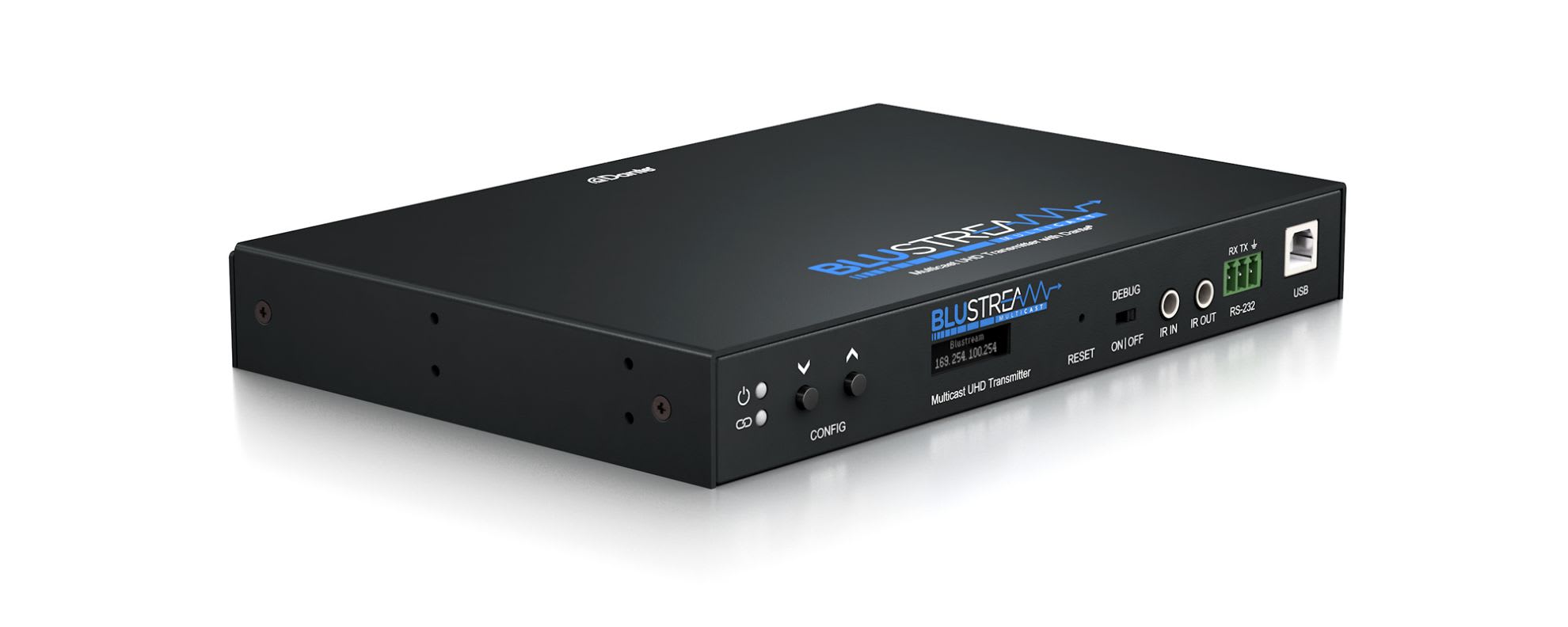

IP250UHD-TX

UHD Video over IP Transmitter via 1Gb Managed Network with Dante

• Advanced UHD video over 1Gb Managed Network• Operates as a stand-alone system, or together with existing IP200UHD products • Virtually unlimited system size• Extends HDMI and Dante up to a distance of 100m over a single CAT cable• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)• Supports HDR input @ 4K 30/25/24Hz• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output• Analogue L/R audio embedding• Analogue L/R audio outputs support both balanced and unbalanced audio signals• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video• OLED front panel display for advanced system information and manual configuration• PoE (Power over Ethernet) to power Blustream Multicast products from PoE switch• HDCP 2.2 compliant with advanced EDID management• Local 24V 1A power supply should Ethernet switch not support PoE (not included)• Features 4 operational modes:   - Matrix distribution (requires 1Gb network switch)   - Video wall (requires 1Gb network switch)   - One-to-one HDMI extender (no network switch required)   - One-to-many HDMI extender (no network switch required) • Video input: 1 x HDMI Type A, female • Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, female• Latency: 1 Frame (16-33ms depending on frame rate) No latency on HDMI Loop out• Audio input:1 x 5-pin Phoenix connector• Audio Output Connectors: 1 x 5-pin Phoenix connector• Ethernet port: 2 x LAN RJ45 connector• Fibre Port: 1 x SFP connector (fibre module not supplied)• RS-232 serial port: 1 x 3-pin Phoenix connector• USB/KVM Port: 1 x USB-Type B• IR input: 1 x 3.5mm stereo jack• IR output: 1 x 3.5mm mono jack• PoE draw: 8.0W (typical), 9.2W (max load) • Firmware Update: 1 x Micro-USB• Mounting kit included 1 x IP250UHD-TX1 x IRR IR Receiver1 x IR1 IR Emitter1 x Serial 3-pin Phoenix Connector1 x Mounting Kit1 x Quick Reference Guide Download firmware
