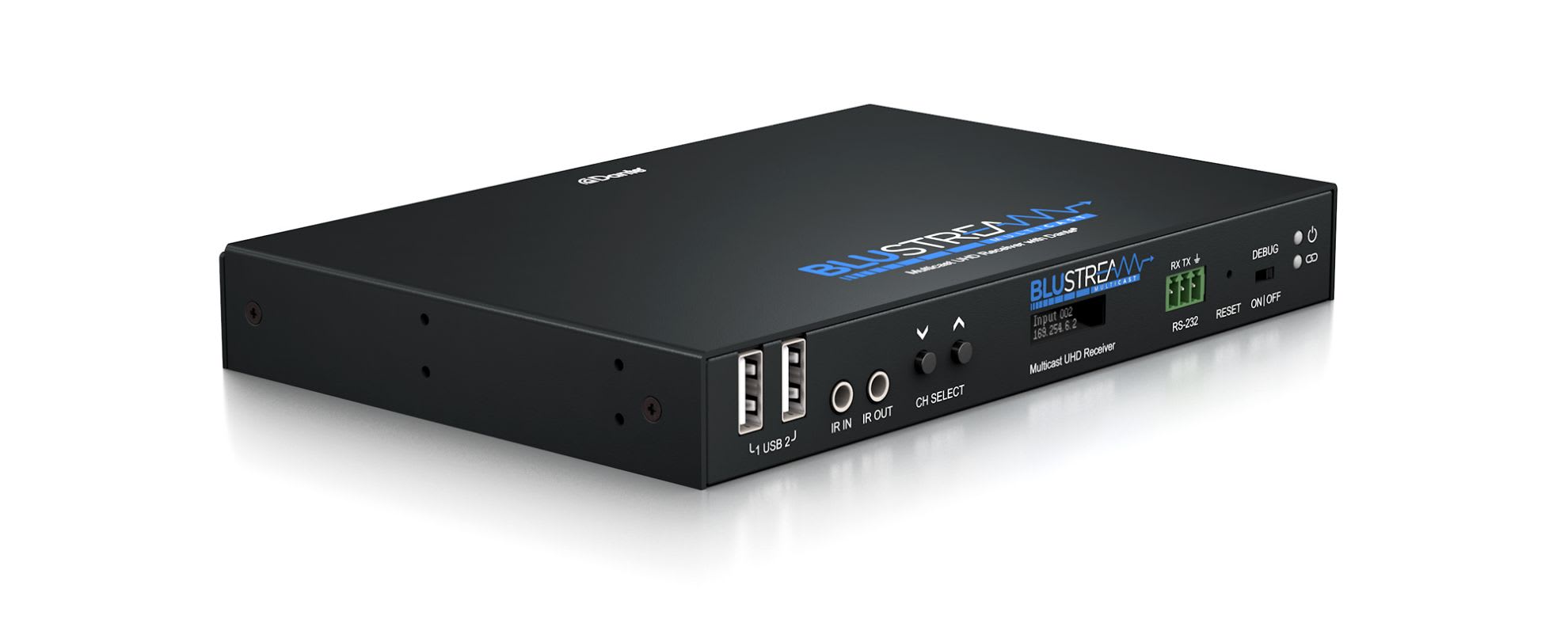

IP250UHD-RX

UHD Video over IP Receiver via 1Gb Managed Network with Dante

• Advanced UHD video over 1Gb Managed Network• Operates as a stand-alone system, or together with existing IP200UHD products • Virtually unlimited system size• Extends HDMI and Dante up to a distance of 100m over a single CAT cable• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable• Video up-scaling and down-scaling• Supports up to 4K 30Hz UHD video output• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output• Optical (S/PDIF) audio input for conversion of a stereo digital audio format into a Dante audio system• Analogue L/R audio outputs support both balanced and unbalanced audio signals• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video• OLED front panel display for advanced system information and manual configuration• PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch• HDCP 2.2 compliant with advanced EDID management• Local 24V 1A power supply should Ethernet switch not support PoE (not included)• Features 4 operational modes:   - Matrix distribution (requires 1Gb network switch)   - Video wall (requires 1Gb network switch)   - One-to-one HDMI extender (no network switch required)   - One-to-many HDMI extender (no network switch required) • Video Input Connectors: 1 x LAN RJ45 connector,• Video Output Connectors: 1 x HDMI Type A, female• Latency: 1 Frame (16-33ms depending on frame rate)• Audio input: 1 x Optical (S/PDIF)• Audio Output Connectors: 1 x 5-pin Phoenix connector• Ethernet port: 2 x LAN RJ45 connector• Fibre Port: 1 x SFP connector (fibre module not supplied)• RS-232 serial port: 1 x 3-pin Phoenix connector• USB/KVM Port: 2 x USB-Type A• IR Input ports: 1 x 3.5mm stereo jack• IR Output ports: 1 x 3.5mm mono jack• PoE draw: 8.0W (typical), 9.2W (max load) • Firmware Update: 1 x Micro-USB• Mounting kit included 1 x IP250UHD-RX1 x IRR IR Receiver1 x IR1 IR Emitter1 x Serial 3-pin phoenix connector1 x Mounting kit1 x Quick Reference Guide Download firmware
