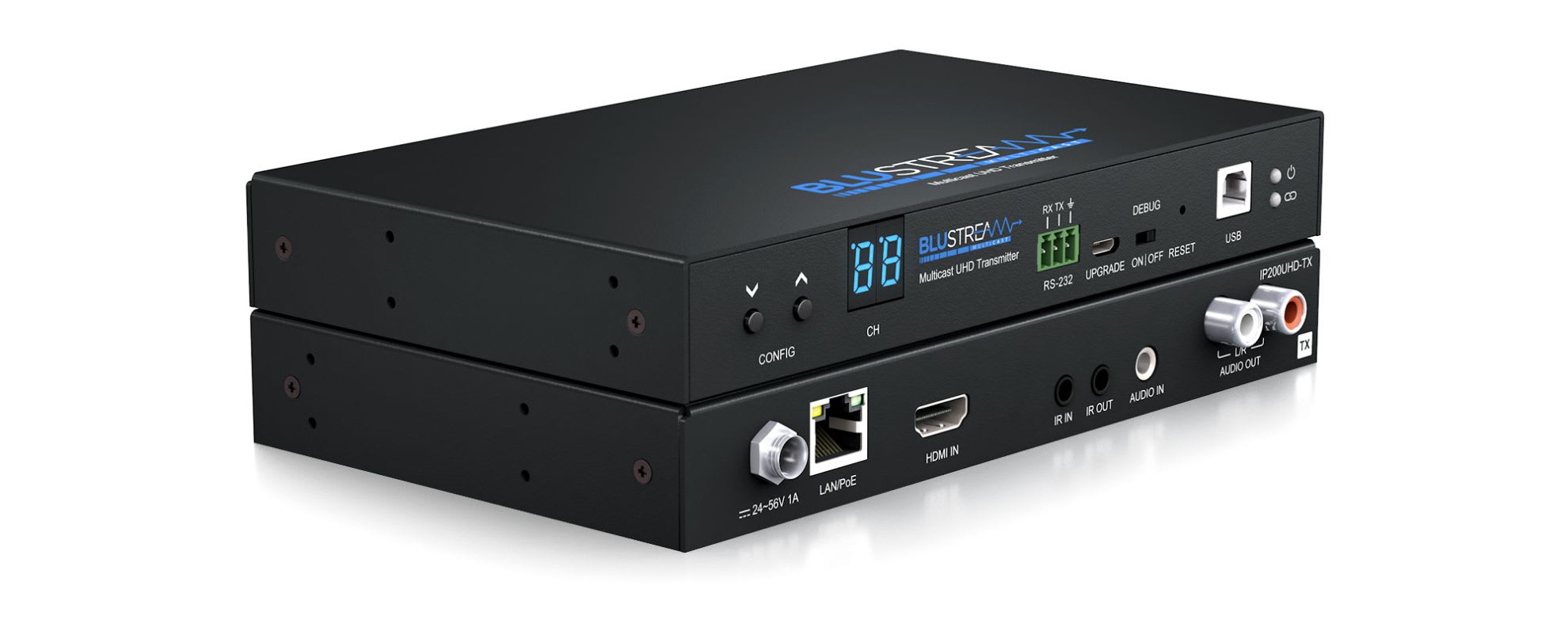

IP200UHD-TX

UHD Video over IP Transmitter via 1Gb Managed Network

• Advanced UHD video over 1Gb Network • Virtually unlimited system size• Extends HDMI up to a distance of 100m over a single CAT cable• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0) • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video• PoE (Power over Ethernet) to power Blustream products from PoE switch• HDCP 2.2 compliant with advanced EDID management• Analogue L/R audio embedding• Analogue L/R audio breakout• Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately• Features 4 operational modes:   - Matrix distribution (requires 1GB network switch)   - Video wall (requires 1GB network switch)   - One-to-one HDMI extender (no network switch required)   - One-to-many HDMI extender (no network switch required) • Video Input: 1 x HDMI Type A, female  • Video Output: 1 x LAN RJ45 connector  • Latency: 1 Frame (16-33ms depending on frame rate)• Audio Input: 1 x 3.5mm L/R Analogue audio  • Audio Output Connectors: 2 x RCA L/R Analogue audio  • Ethernet Port: 1 x LAN RJ45 connector   • RS-232 Serial Port: 1 x 3-Pin Phoenix connector  • USB / KVM Port: 1 x USB - Type B  • IR Input: 1 x 3.5mm stereo jack  • IR Output: 1 x 3.5mm mono jack • PoE draw: 6.0W (typical), 7.2W (max load) • Firmware Update: 1 x Micro-USB  • Mounting Kit Included  • Dimensions (W x D x H ): 190mm x 114mm x 25mm   • Shipping Weight: 0.8kg  • Operating Temperature: 32°F to 104°F (0°C to 40°C)  • Storage Temperature: -4°F to 140°F (-20°C to 60°C) 1 x IP200UHD-TX 1 x (IRR) IR Receiver 1 x (IR1) IR Transmitter 1 x Serial 3-pin Phoenix Connector 1 x Mounting Kit Download firmware
