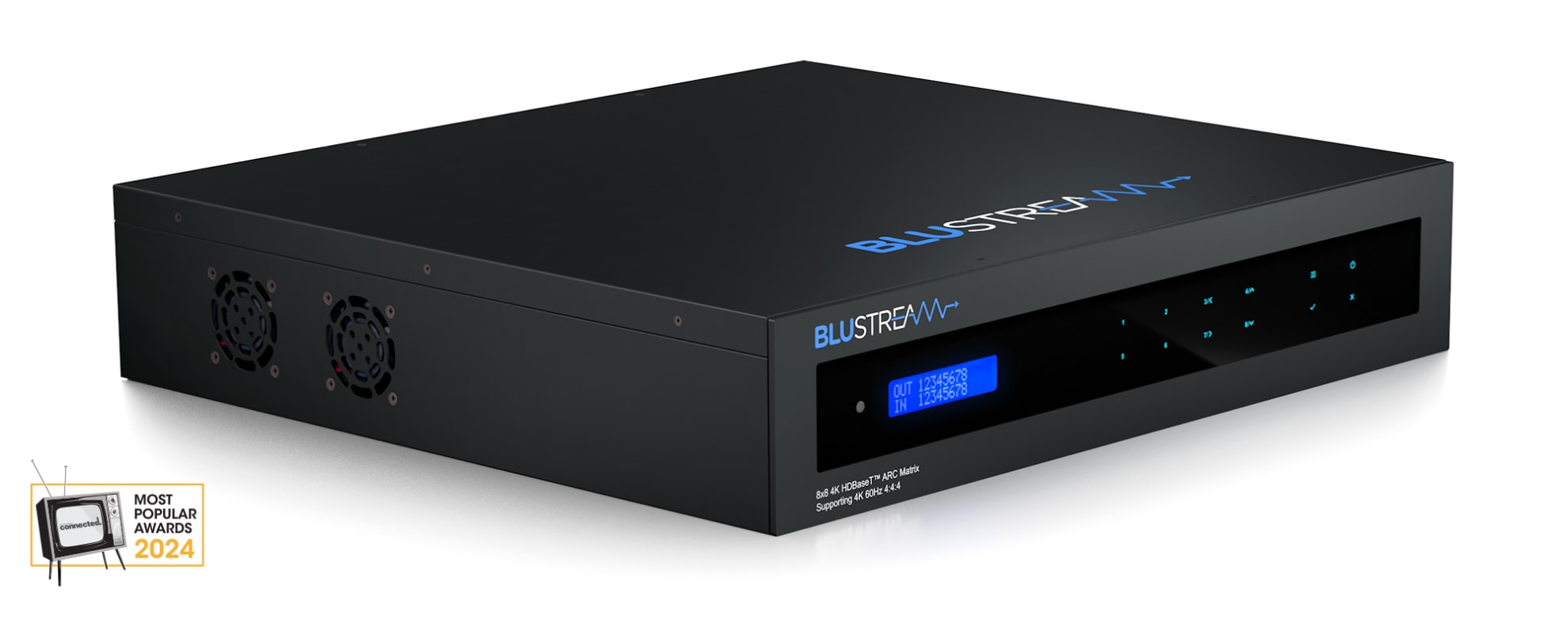

HMXL88ARC

8x8 HDBaseT™ CSC ARC Matrix - 70m

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs• Output 1 features simultaneous HDMI and HDBaseT™ output• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive • 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs• Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:   - 8 x audio breakout from HDMI source inputs   - 8 x audio breakout from zone outputs    - 8 x ARC from zone outputs*   - 1 x Optical and 1 x Analogue audio input• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Web interface module for control and configuration of matrix• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP• Supports 24V PoC (Power over Cable) to power compatible Blustream RX70CS receivers • Supplied with Blustream IR receivers and emitters• Advanced EDID management and HDCP 2.2 compliantARC feature supports HDMI ARC or Optical ARCPoC, CSC, and ARC feature compatible with RX70CS only • Video Input Connectors: 8 x HDMI Type A, 19-pin, female• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connector, used with RX70CS receiver• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo jack), 8 x Optical (S/PDIF)• RS-232 Serial Ports: 9 x 3-pin Phoenix connector• TCP/IP Control: 1 x RJ45, female• IR Input Ports: 9 x 3.5mm stereo jack• IR Output Ports: 9 x 3.5mm mono jack• Rack Mountable: 2U rack height, rack ears included• Casing Dimensions (WxDxH):  436mm x 400mm x 88mm (without feet)• Shipping Weight: 10.5kg • Operating Temperature: 32°F to 104°F (-5°C to +55°C)• Storage Temperature: -4°F to 140°F (-25°C to +70°C)• Power Supply: Internal 100-240V AC 1 x HMXL88ARC1 x Rack Mounting Kit1 x Remote Control8 x IR Emitters9 x IR Receivers1 x Serial Cable - DB9 to 3-pin Phoenix Connector1 x IR Control Cable - 3.5mm-3.5mm CableIEC Power Cable(s)1 x Quick Reference Guide Download firmware
