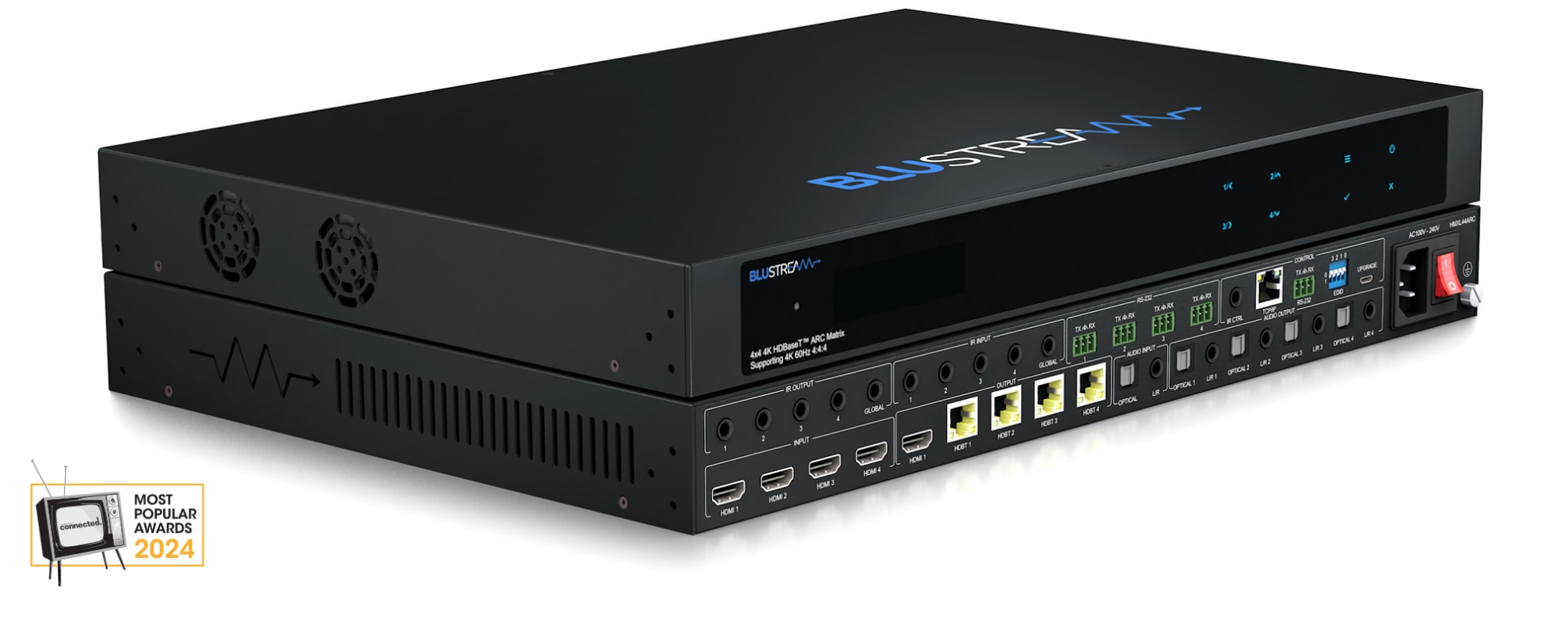

HMXL44ARC-KIT

4x4 HDBaseT™ AV Matrix Kit - 4K 60HZ 4:4:4

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs• Output 1 features simultaneous HDMI and HDBaseT™ output• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K • UHD resolution on remaining video outputs• Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:   - 4x audio breakout from HDMI source inputs   - 4x audio breakout from zone outputs    - 4x ARC from zone outputs*   - 1x Optical and 1x Analogue audio input• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Web interface module for control and configuration of matrix• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers • Supplied with Blustream IR receivers and emitters• Advanced EDID management and HDCP 2.2 compliant• Supplied with 4x RX70CS HDBaseT Receivers ARC feature supports HDMI ARC or Optical ARCCSC and ARC Feature compatible with RX70CS only • Video Input Connectors: 4x HDMI Type A, 19-pin, female• Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector• Audio Output Connectors: 1x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (SPDIF)• Audio Output Connectors: 4x Analogue audio L/R (3.5mm stereo Jack), 4x Optical (SPDIF)• RS-232 serial ports: 5x 3-pin phoenix connector• TCP/IP Control: 1x RJ45, female• IR Input ports: 5x 3.5mm stereo jack• IR Output ports: 4x 3.5mm mono jack• Rack-Mountable: 1U rack height, rack ears included• Casing Dimensions (WxDxH):  436 x 300 x 44 mm• Operating Temperature: 32°F to 104°F (-5°C to +55°C)• Storage Temperature : -4°F to 140°F (-25°C to +70°C)• Power Supply: Internal 100-240v AC 1 x HMXL44ARC4 x RX70CS1 x Rack mounting kit 1 x Remote control4 x IR emitters5 x IR receivers1x Serial Cable - DB9 to 3-pin phoenix connector1 x IR Control Cable - 3.5mm-3.5mm CableIEC Power Cable(s)1 x Quick Reference Guide Download firmware
