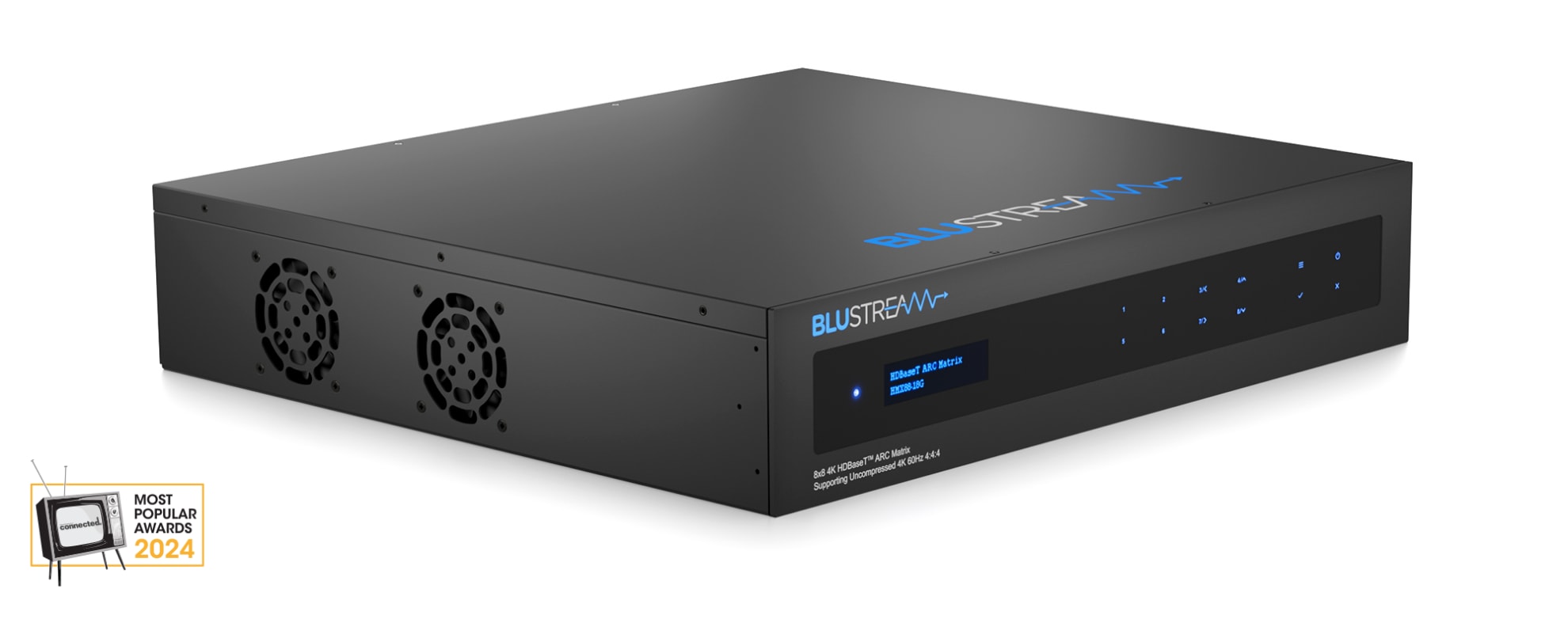

HMX88-18G

8x8 HDBaseT3™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4

• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable • Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs • Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs • Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m* • Supports distribution of the latest HDR resolutions including HDR10/10+• 26x8 Audio Matrix independently controllable from video. Audio source inputs include: - 8 x audio breakout from HDMI source inputs - 8 x audio breakout from zone outputs - 8 x audio return from zone outputs* - 1 x Optical and 1x Analogue audio input • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum) • Web interface module for control and configuration of the Matrix • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers • Advanced EDID management and HDCP 2.3 compliant

• Transmission distance is subject to video format, cable type and installation environment.
• The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues. ** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only • Video Input Connectors: 8 x HDMI Type A, 19-pin, female • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors • Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF) • RS-232 Serial Port: 9 x 3-pin phoenix connector • TCP/IP Control Port: 1 x RJ45, female • Ethernet Passthrough Port: 1 x RJ45, female • IR Input Ports: 10 x 3.5mm stereo jack • IR Output Ports: 9 x 3.5mm mono jack • Product Upgrade Port: 1 x Micro USB, female • Rack Mountable: 2U rack height, rack ears included • Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet) • Shipping Weight: 10.5kg • Operating Temperature: 23°F to 131°F (-5°C to +55°C) • Storage Temperature: -13°F to 158°F (-25°C to +70°C) • Power Supply: Internal 100-240V AC • HDBaseT Power Output: 24V DC 0.75A per port 1 x HMX88-18G 1 x Rack mounting kit 1 x Remote control 8 x IR emitters 9 x IR receivers 1 x Serial Cable - DB9 to 3-pin phoenix connector 1 x IR Control Cable - 3.5mm-3.5mm Cable IEC Power Cable(s) 1 x Quick Reference Guide Download firmware
